PN 16 Cast Steel Angle SDNR Valve - DIN Standard
PN 16 Cast Steel Angle SDNR Valve - DIN Standard
SKU:VAL-90ea91
Durable PN 16 Cast Steel Angle Valve for industrial use, compliant with DIN standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle SDNR Valve - DIN Standard
$399.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle SDNR Valve - DIN Standard
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

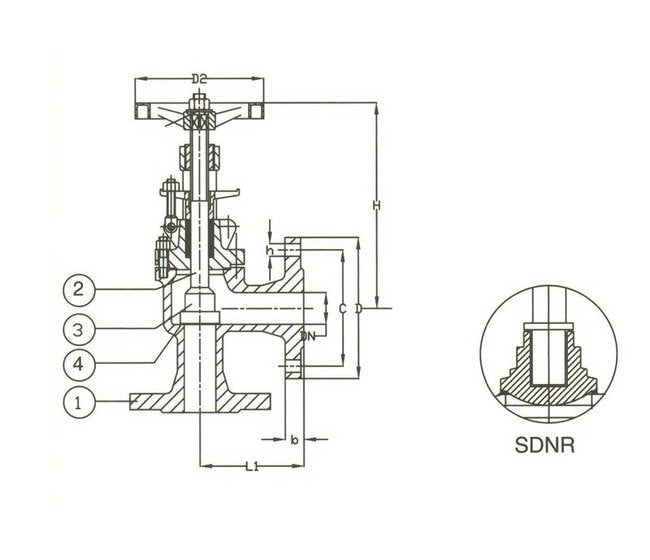

The PN 16 Cast Steel Angle SDNR Valve is a robust solution designed for industrial applications. Constructed with Cast Steel body, Brass stem, Stainless Steel disc, and either Brass or Stainless Steel seat, this valve ensures durability and reliability. With a Face to Center measurement according to ISO5752 Series 8 and flanges meeting DIN2501-PN16 standards, it guarantees seamless integration and performance. The Handwheel actuator provides manual control, making it versatile for various operational needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
355 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
200 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
125
Specifications Stem Material
Brass
Specifications T
22 mm
Specifications Weight
46 kg
