PN 16 Cast Steel Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
PN 16 Cast Steel Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
SKU:VAL-173cd8
Durable PN 16 Cast Steel Angle SDNR Valve with Brass or Stainless Steel components. Reliable performance under high pressure.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
$899.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle SDNR Valve - DIN2501-PN16 Flanged Drilled
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle SDNR Valve is a robust solution for industrial applications, featuring a Cast Steel body, Stainless Steel seat, and disc, ensuring durability and corrosion resistance. Designed with precision, this valve meets DIN 17672 standards for Brass or Stainless Steel components, providing reliable performance under high-pressure conditions. The handwheel actuator allows for easy operation, while the flanges adhere to DIN2501-PN16 specifications, making installation seamless and secure.
Ready to Grow Without Cash Flow Constraints?

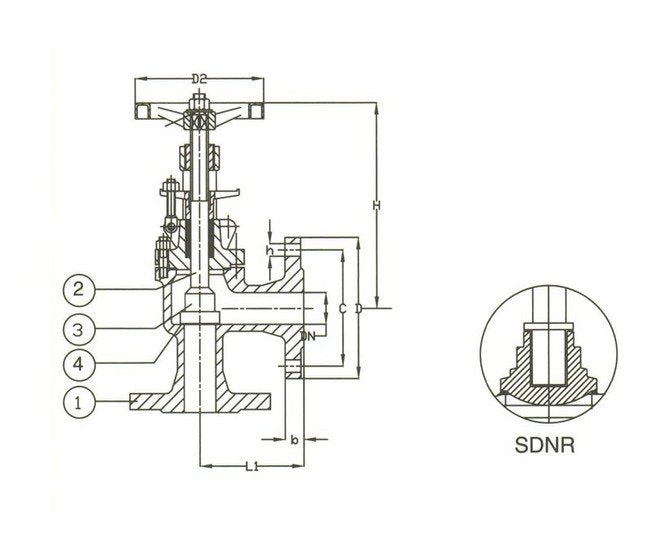

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications D2
420 mm
Specifications Disc Material
Stainless Steel
Specifications H
500 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
275 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
200
Specifications Stem Material
Stainless Steel
Specifications T
24 mm
Specifications Weight
126 kg
