PN 16 Cast Steel Angle Valve - 250 Size, Handwheel Actuator
PN 16 Cast Steel Angle Valve - 250 Size, Handwheel Actuator
SKU:VAL-19b440
Rugged PN 16 Cast Steel Angle Valve with Handwheel Actuator for precise flow control in industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
PN 16 Cast Steel Angle Valve - 250 Size, Handwheel Actuator
$899.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Angle Valve - 250 Size, Handwheel Actuator
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Angle Valve offers durability and reliability, featuring a Cast Steel body, Stainless Steel seat and disc, and Stainless Steel stem. With hydraulic inspection ratings of 16 for the body and 10 for the seat, this valve meets stringent DIN standards for performance. The Handwheel actuator ensures convenient manual operation, making it suitable for industrial applications requiring precision flow control. Compatible with DIN2501-PN16 flanges, this valve is designed for seamless integration into diverse systems.

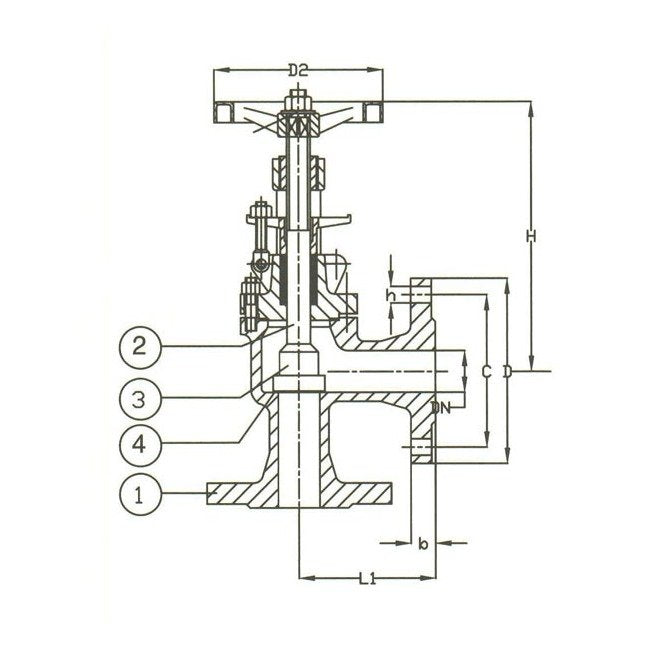

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
355 mm
Specifications Connection
Flanged Drilled
Specifications D
405 mm
Specifications D2
500 mm
Specifications Disc Material
Stainless Steel
Specifications H
580 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
753479
Specifications L1
325 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
250
Specifications Stem Material
Stainless Steel
Specifications T
26 mm
Specifications Weight
184 kg
