PN 16 Cast Steel Angle Valve with Brass Seat and Stainless Steel Disc

Name: PN 16 Cast Steel Angle Valve with Brass Seat and Stainless Steel Disc
Brand: World Wide Metric, Inc.
SKU: VAL-89f4b7
Price: 229.99 USD
Availability: OutOfStock

SKU:VAL-89f4b7

Durable PN 16 Cast Steel Angle Valve for precise industrial fluid control with Brass seat and Stainless Steel disc.

$229.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Steel Angle Valve is a durable and reliable solution for industrial fluid control. Constructed with a Cast Steel body, Brass seat, and Stainless Steel disc, this valve ensures longevity and efficient performance. The handwheel actuator provides manual control, while the flanged connection offers easy installation. With compliance to DIN standards, this valve meets the rigorous requirements of institutional buyers seeking quality and precision in their operations.

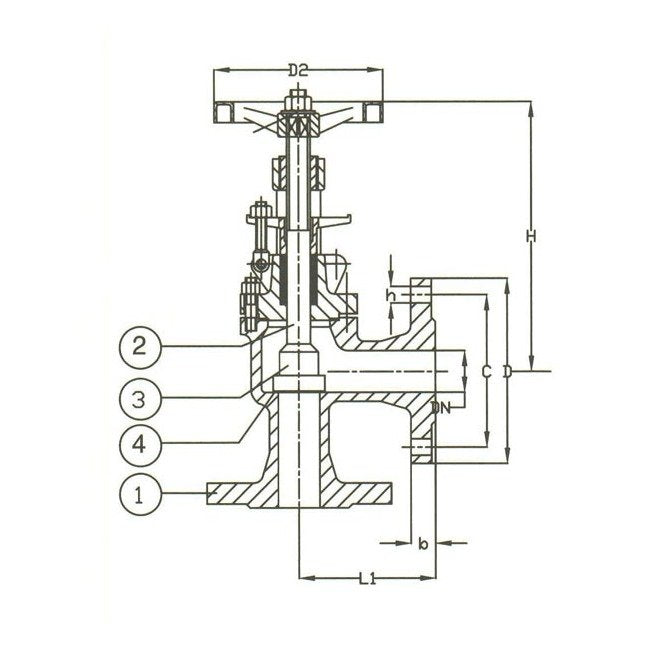

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

160 mm

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications D2

200 mm

Specifications Disc Material

Stainless Steel

Specifications H

280 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

155 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

080

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

23.0 kg
