PN 16 Cast Steel DIN Angle Valve
PN 16 Cast Steel DIN Angle Valve
SKU:VAL-109159
Durable PN 16 Cast Steel DIN Angle Valve for precise fluid control in industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
PN 16 Cast Steel DIN Angle Valve
$189.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel DIN Angle Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel DIN Angle Valve is a durable and reliable solution for industrial fluid control applications. Constructed with high-quality materials including Cast Steel body, Stainless Steel seat, disc, and stem, this valve ensures long-term performance and corrosion resistance. With specifications meeting DIN standards, ISO5752 requirements, and flanges according to DIN2501-PN16, this valve offers precision and efficiency in fluid handling.

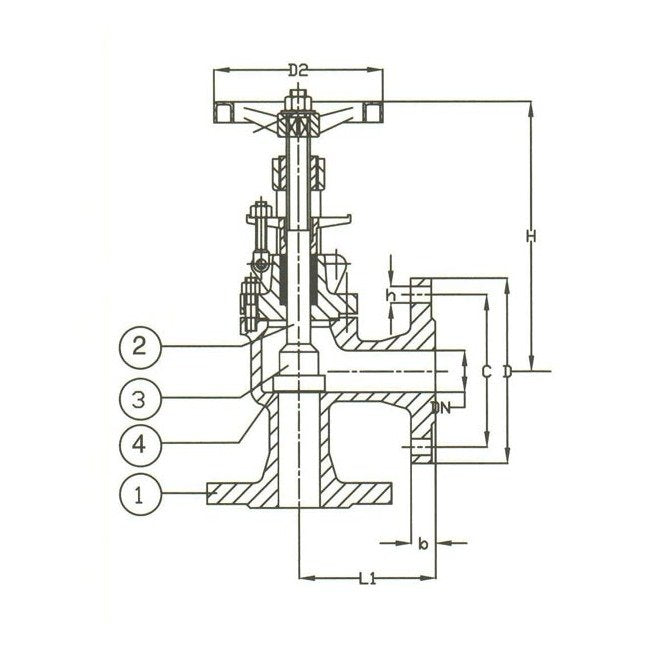

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
280 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753473 | 755316
Specifications L1
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
23.0 kg
