PN 16 Cast Steel Spring-loaded Angle Valve
PN 16 Cast Steel Spring-loaded Angle Valve
SKU:VAL-5efde2
Premium PN 16 Cast Steel Angle Valve for reliable hydraulic performance in industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
PN 16 Cast Steel Spring-loaded Angle Valve
$189.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Spring-loaded Angle Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Spring-loaded Angle Valve is engineered with precision, featuring a robust Cast Steel body, Stainless Steel disc, and stem for exceptional durability. Designed to meet DIN2501-PN16 standards, this valve ensures reliable performance in critical hydraulic systems. The spring actuators enable swift operation, enhancing efficiency and safety. With impeccable craftsmanship and quality materials, this valve guarantees long-term reliability, making it ideal for industrial applications.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled

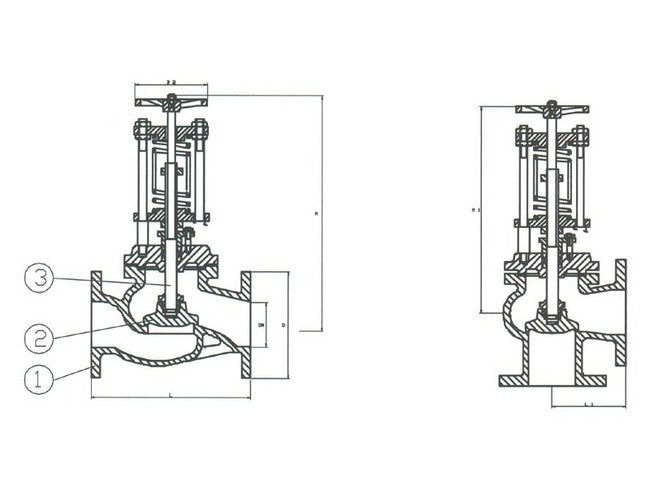

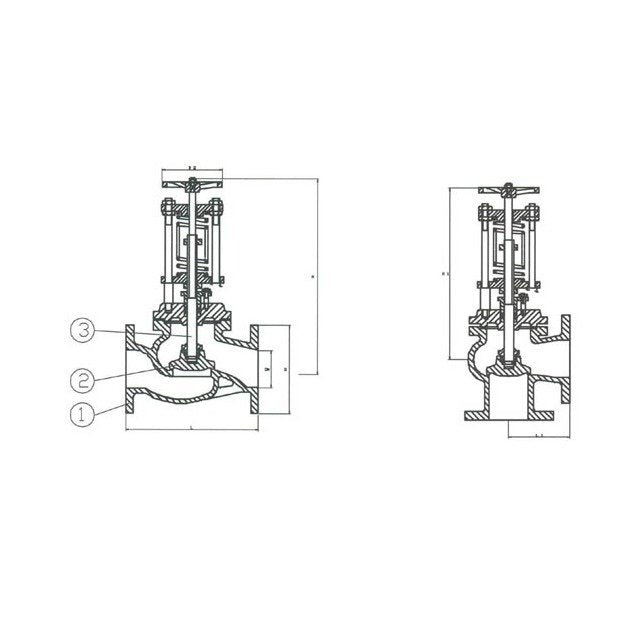

Specifications D
115 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H1
325 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
100 mm
Specifications Seat Material
Brass
Specifications Size
025
Specifications Stem Material
Brass
Specifications Weight
8.0 kg
