PN 16 Cast Steel Spring-Loaded Angle Valve
PN 16 Cast Steel Spring-Loaded Angle Valve
SKU:VAL-fed1d4
Durable Cast Steel Angle Valve meeting DIN2501-PN16 standards for marine and industrial use.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PN 16 Cast Steel Spring-Loaded Angle Valve
$289.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Spring-Loaded Angle Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Spring-Loaded Angle Valve is a robust solution featuring a Cast Steel body, Stainless Steel disc, and stem ensuring durability and reliability. With brass seat material and spring actuators, this valve meets stringent industry standards for hydraulic inspections and connection requirements. Flanges adhere to DIN2501-PN16 specifications, making it ideal for marine applications, industrial settings, and more.

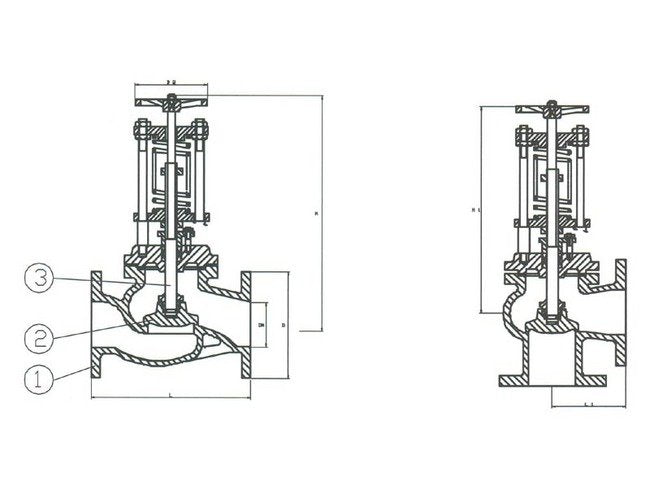

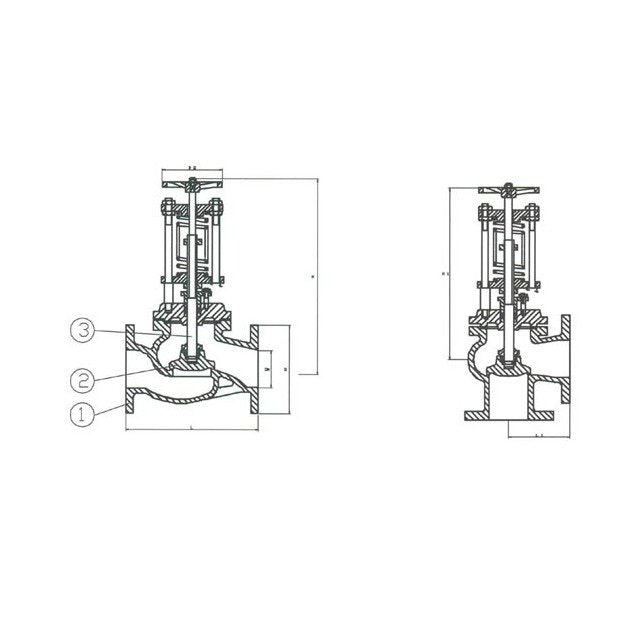

Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
185 mm
Specifications D2
140 mm
Specifications Disc Material
Stainless Steel
Specifications H1
400 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
145 mm
Specifications Seat Material
Brass
Specifications Size
065
Specifications Stem Material
Brass
Specifications Weight
28.0 kg
