PN 16 Cast Steel Spring-Loaded Globe Valve
PN 16 Cast Steel Spring-Loaded Globe Valve
SKU:VAL-d1c9a0
Durable PN 16 Cast Steel Globe Valve with stainless steel disc and precise spring actuators for industrial fluid control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
PN 16 Cast Steel Spring-Loaded Globe Valve
$599.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Spring-Loaded Globe Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

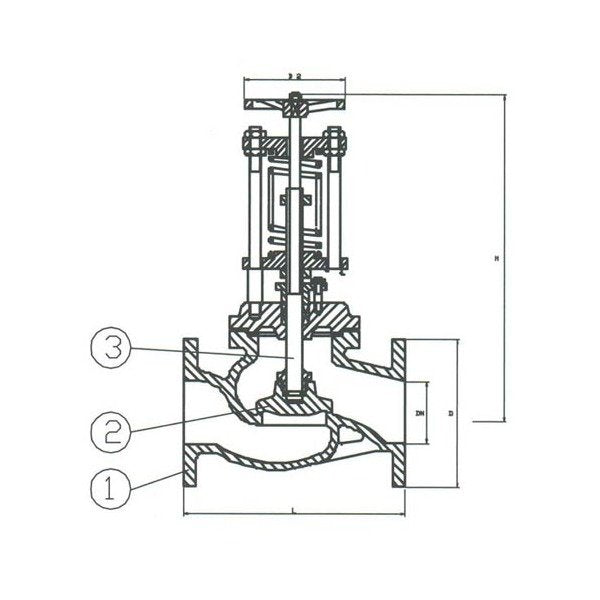

The PN 16 Cast Steel Spring-Loaded Globe Valve is a robust and reliable solution for fluid control in industrial settings. Constructed with GSC-25N2 Cast Steel body, Stainless Steel disc, and stems, this valve ensures durability and efficiency. Its standard DIN2501-PN16 flanges guarantee secure connections, making it ideal for high-pressure applications. The spring actuators provide precise control, while the Brass seat material enhances sealing performance, meeting stringent procurement standards.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
285 mm
Specifications D2
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
640 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
480 mm
Specifications Seat Material
Brass
Specifications Size
150
Specifications Stem Material
Brass
Specifications Weight
78.00 kg
