PN 16 Cast Steel Spring loaded Globe Valve
PN 16 Cast Steel Spring loaded Globe Valve
SKU:VAL-b3210d
Durable PN 16 Cast Steel Globe Valve with Spring-loaded actuators, ideal for fluid control applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 16 Cast Steel Spring loaded Globe Valve
$299.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Spring loaded Globe Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Spring loaded Globe Valve is expertly crafted for durability and high performance. With a sturdy Cast Steel body, Stainless Steel disc, and stem, this valve ensures longevity and reliability. Compliant with DIN2501-PN16 standards, it offers precision and efficiency in fluid control applications. The Spring-loaded actuators provide optimal functionality, making it a top choice for industrial settings. The Brass seat material enhances sealing, while the flanged connection ensures secure installation. Trusted by both consumers and institutional buyers for its quality and adherence to industry standards.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled

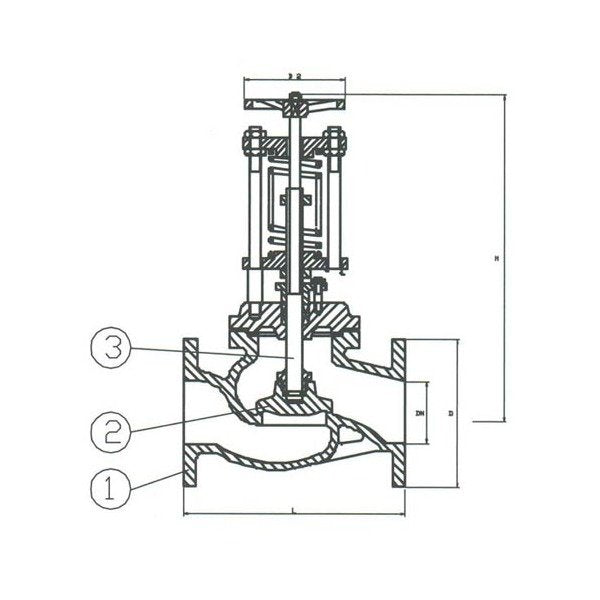

Specifications D
165 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
400 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
230 mm
Specifications Seat Material
Brass
Specifications Size
050
Specifications Stem Material
Brass
Specifications Weight
13.0 kg
