PN 16 Cast Steel Spring-Loaded Globe Valve
PN 16 Cast Steel Spring-Loaded Globe Valve
SKU:VAL-8e6c20
Durable PN 16 Cast Steel Globe Valve with spring actuator for reliable performance. Meets DIN standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PN 16 Cast Steel Spring-Loaded Globe Valve
$129.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Spring-Loaded Globe Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

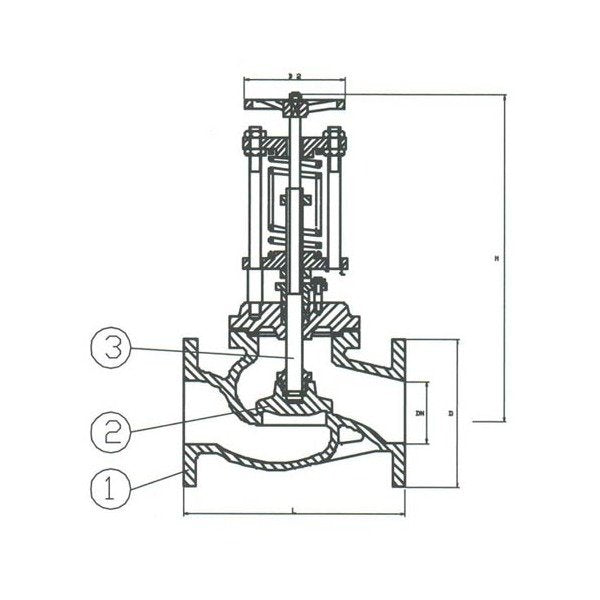

The PN 16 Cast Steel Spring-Loaded Globe Valve is a robust solution designed for optimal performance in industrial settings. Constructed with a Cast Steel body and Stainless Steel disc and stem, this valve ensures durability and efficient operation. It features a spring actuator for precise control, flanged connections for easy installation, and meets DIN2501-PN16 standards, making it ideal for applications requiring reliability and strength.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
105 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
300 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
150 mm
Specifications Seat Material
Brass
Specifications Size
020
Specifications Stem Material
Brass
Specifications Weight
6 kg
