PN 16 Cast Steel Spring Loaded Globe Valve - DIN Specialty Valve
PN 16 Cast Steel Spring Loaded Globe Valve - DIN Specialty Valve
SKU:VAL-6a2fbe
Premium PN 16 Cast Steel Globe Valve - Built to Last & Perform Efficiently
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
PN 16 Cast Steel Spring Loaded Globe Valve - DIN Specialty Valve
$499.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Spring Loaded Globe Valve - DIN Specialty Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Cast Steel Overboard Spring loaded Globe Valve is expertly crafted for durability and efficiency. Featuring a cast steel body, stainless steel disc, and stem, this valve ensures exceptional performance in hydraulic systems. With flanges according to DIN2501-PN16 standards, it offers a secure connection. The spring-loaded actuators provide reliable operation, meeting the stringent requirements of both institutional and consumer buyers.

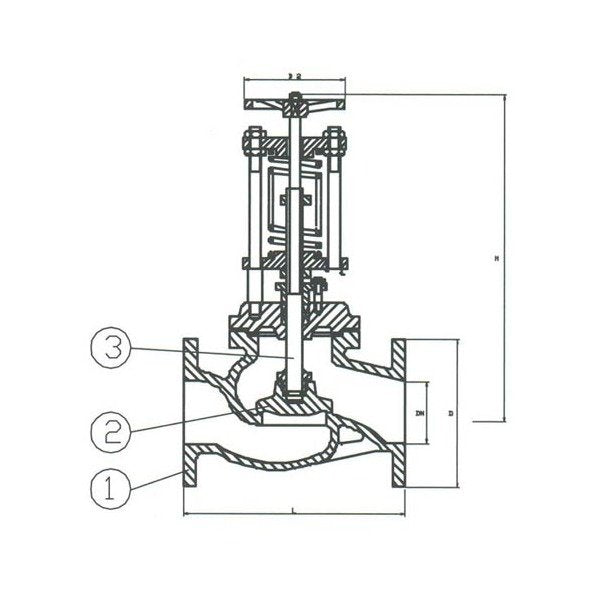

Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications D2
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
770 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications L
600 mm
Specifications Seat Material
Brass
Specifications Size
200
Specifications Stem Material
Brass
Specifications Weight
140 kg
