PN 16 Cast Steel Spring Loaded Globe Valve - DIN2501-PN16
PN 16 Cast Steel Spring Loaded Globe Valve - DIN2501-PN16
SKU:VAL-8f3af3
Durable PN 16 Cast Steel Globe Valve - DIN2501-PN16, ideal for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PN 16 Cast Steel Spring Loaded Globe Valve - DIN2501-PN16
$799.99
Quantity: 1
Claim Your Seller Account
PN 16 Cast Steel Spring Loaded Globe Valve - DIN2501-PN16
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

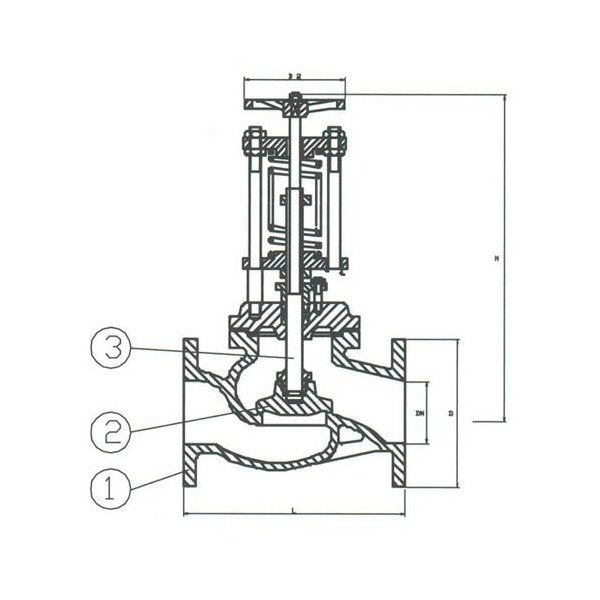

The PN 16 Cast Steel Spring Loaded Globe Valve is a robust solution for industrial applications, featuring a Cast Steel body, Stainless Steel disc, and stem materials that ensure durability and reliable performance. With flanges according to DIN2501-PN16 standards, this valve meets stringent hydraulic inspection requirements for both the body and seat. Weighing 215 kg and sized at 250, with dimensions L: 730 mm, D: 405 mm, H: 900 mm, and D2: 395 mm, this valve offers precision engineering for efficient fluid control.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
405 mm
Specifications D2
395 mm
Specifications Disc Material
Stainless Steel
Specifications H
900 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications L
730 mm
Specifications Seat Material
Brass
Specifications Size
250
Specifications Stem Material
Brass
Specifications Weight
215 kg
