PN 16 Cast Steel Swing Check Valve - DIN 2501-PN16

Name: PN 16 Cast Steel Swing Check Valve - DIN 2501-PN16
Brand: World Wide Metric, Inc.
SKU: VAL-e896dd
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-e896dd

Reliable PN 16 Cast Steel Swing Check Valve for industrial applications, compliant with DIN standards.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Steel Swing Check Valve is designed for optimal performance and durability in industrial applications. Made with high-quality materials including Cast Steel body, Stainless Steel hinge, seat, disc, and stem, this valve ensures long-lasting reliability. Compliant with DIN 3202-F6 standards, it offers secure fluid flow control and features a gravity-operated actuator for ease of use.

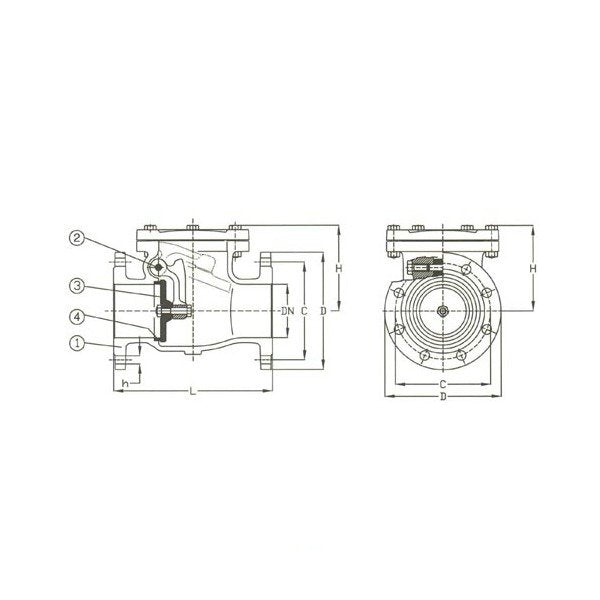

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Cast Steel

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications Disc Material

Stainless Steel

Specifications H

110 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753586 | 755952

Specifications L

200 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

050

Specifications Stem Material

Stainless Steel

Specifications T

18 in

Specifications Weight

14.0 kg

PN 16 Cast Steel Swing Check Valve - DIN 2501-PN16
