PN 16 Cast Steel Swing Check Valve - DIN 2501 PN16

Name: PN 16 Cast Steel Swing Check Valve - DIN 2501 PN16
Brand: World Wide Metric, Inc.
SKU: VAL-6f1d95
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-6f1d95

Durable PN 16 Cast Steel Swing Check Valve for high-pressure industrial use, complies with DIN standards.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Steel Swing Check Valve is expertly designed for durability and performance in industrial settings. Constructed with a cast steel body, stainless steel hinge, disc, and seat, this valve ensures reliable operations under high pressure. It complies with DIN standards, featuring precise measurements and flanges for seamless integration. With a gravity actuator and corrosion-resistant materials, this valve guarantees long-lasting functionality, making it ideal for demanding applications.

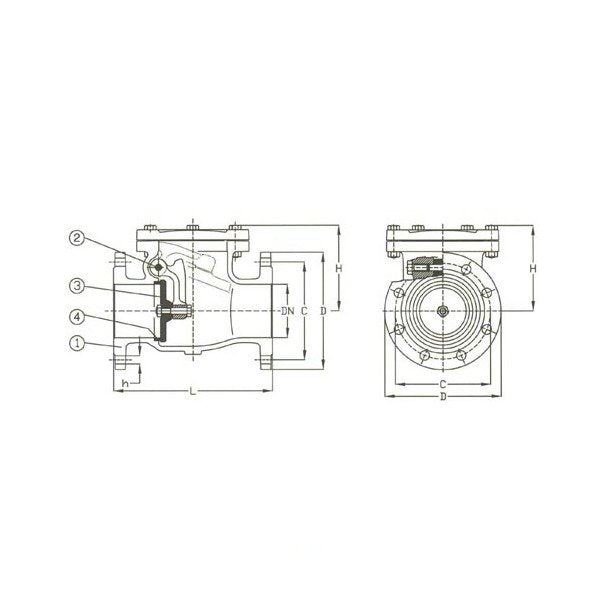

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Cast Steel

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

250 mm

Specifications Disc Material

Stainless Steel

Specifications H

180 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753590 | 755956

Specifications L

350 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

125

Specifications Stem Material

Stainless Steel

Specifications T

22 in

Specifications Weight

43 kg
