PN 16 Cast Steel Swing Check Valve - DIN2501-PN16

Name: PN 16 Cast Steel Swing Check Valve - DIN2501-PN16
Brand: World Wide Metric, Inc.
SKU: VAL-bf766d
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-bf766d

Durable PN 16 Cast Steel Swing Check Valve for reliable fluid control, compliant with DIN standards.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Cast Steel Swing Check Valve is a robust solution for fluid control applications, featuring a Cast Steel body with Stainless Steel components for durability. This valve, compliant with DIN 3202-F6 standards, ensures reliable performance with its Stainless Steel disc and seat. Suitable for various industries requiring a secure valve solution that meets stringent specifications.

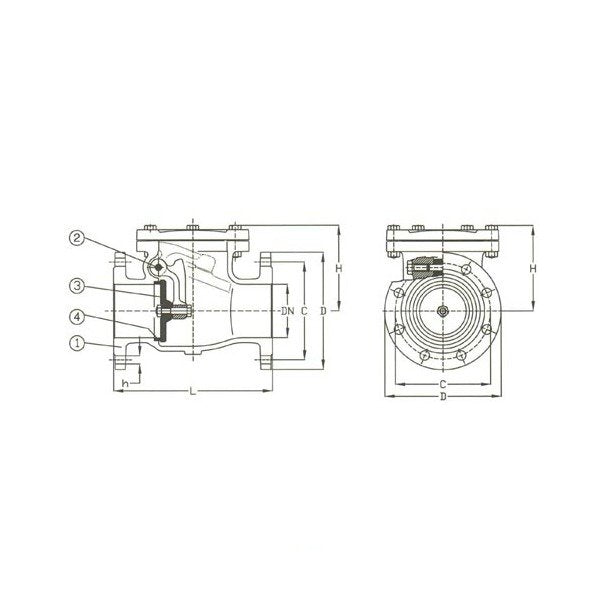

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Cast Steel

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications Disc Material

Stainless Steel

Specifications H

140 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753587 | 755953

Specifications L

240 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

18 in

Specifications Weight

19 kg
