PN 16 DIN Ductile Iron Angle Regular Valve

Name: PN 16 DIN Ductile Iron Angle Regular Valve
Brand: World Wide Metric, Inc.
SKU: VAL-632ac6
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-632ac6

Durable PN 16 DIN Ductile Iron Angle Valve for hydraulic systems. Compliant with DIN standards. Ideal for industrial applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 DIN Ductile Iron Angle Regular Valve is engineered with a Ductile Iron body, Stainless Steel seat, and disc, ensuring durability and optimal performance. Compliant with DIN 17672 standards, this valve offers precision and reliability in hydraulic systems. Featuring a Brass or Stainless Steel stem and flanges according to DIN2501-PN16, this valve is designed for seamless integration and efficient hydraulic inspection. With a weight of 92 kg and dimensions conforming to ISO5752 Series 8 standards, this valve is a robust choice for industrial applications.

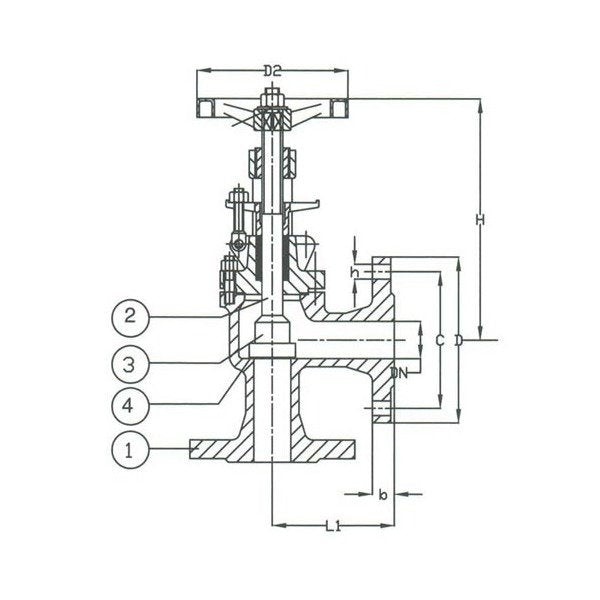

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

270 mm

Specifications Connection

Flanged Drilled

Specifications D

315 mm

Specifications D2

300 mm

Specifications Disc Material

Stainless Steel

Specifications H

470 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

250 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

175

Specifications Stem Material

Stainless Steel

Specifications T

24 mm

Specifications Weight

92 kg

PN 16 DIN Ductile Iron Angle Regular Valve
