PN 16 DIN Ductile Iron Angle Valve

Name: PN 16 DIN Ductile Iron Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-de4118
Price: 199.99 USD
Availability: OutOfStock

SKU:VAL-de4118

Reliable PN 16 DIN Ductile Iron Angle Valve for precise fluid control in industrial settings.

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 DIN Ductile Iron Angle Valve is a robust solution for industrial fluid control. Crafted with GGG402 Ductile Iron body, Brass stem, and Stainless Steel disc, this valve ensures durability and reliability. Compliant with DIN 17672 standards for seat and stem materials, as well as ISO5752 Series 8 for face-to-center alignment. With flanges per DIN2501-PN16, this valve guarantees secure connections and efficient performance.

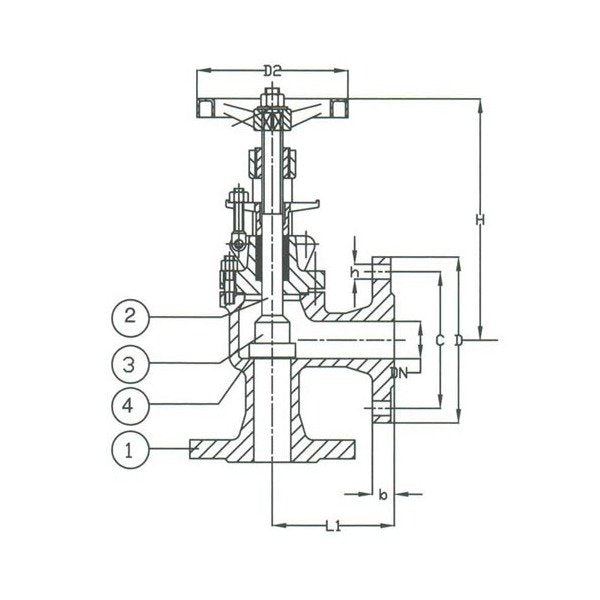

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

150 mm

Specifications Disc Material

Stainless Steel

Specifications H

225 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755421

Specifications L1

125 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

050

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

11.5 kg

PN 16 DIN Ductile Iron Angle Valve
