PN 16 DIN Ductile Iron Angle Valve

Name: PN 16 DIN Ductile Iron Angle Valve
Brand: World Wide Metric, Inc.
SKU: VAL-11276f
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-11276f

Durable PN 16 Ductile Iron Angle Valve, DIN 17672 & DIN2501-PN16 compliant, for precise hydraulic control in industrial settings.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Ductile Iron Angle Valve is expertly crafted with a Ductile Iron body, Stainless Steel seat, disc, and stem, ensuring durability and reliable performance. Compliant with DIN 17672 and DIN2501-PN16 standards, this valve offers precise hydraulic control, supported by a Handwheel actuator for seamless operation. With a compact design and flanged connection, it is ideal for industrial applications requiring efficient flow regulation and longevity.

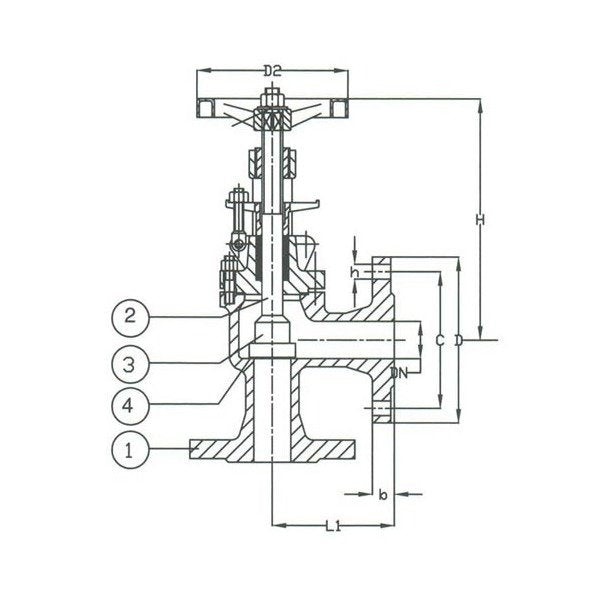

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

200 mm

Specifications Disc Material

Stainless Steel

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L1

145 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

065

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

17.10 kg

PN 16 DIN Ductile Iron Angle Valve
