PN 16 Ductile Iron Angle Regular Valve - 100mm, Flanged Drilled
PN 16 Ductile Iron Angle Regular Valve - 100mm, Flanged Drilled
SKU:VAL-c232f6
High-quality PN 16 Ductile Iron Angle Regular Valve for industrial use, meets DIN standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Angle Regular Valve - 100mm, Flanged Drilled
$249.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Angle Regular Valve - 100mm, Flanged Drilled
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

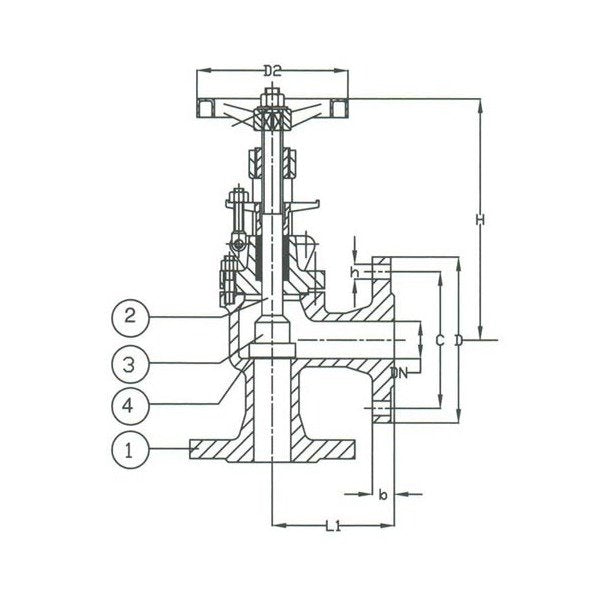

The PN 16 Ductile Iron Angle Regular Valve is engineered with a durable Ductile Iron body, Brass stem and seat, and Stainless Steel disc, meeting stringent DIN 17672 standards. Its robust design ensures reliable performance, with handwheel actuators for easy operation. This valve is meticulously crafted to meet ISO5752 Series 8 standards and DIN2501-PN16 flange requirements, making it ideal for industrial applications that demand precision and longevity.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
325 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755424
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
100
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
32.0 kg
