PN 16 Ductile Iron Angle SDNR Valve - 300 Size
PN 16 Ductile Iron Angle SDNR Valve - 300 Size
SKU:VAL-88cdd4
Premium PN 16 Ductile Iron Angle SDNR Valve for efficient fluid control in industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Angle SDNR Valve - 300 Size
$799.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Angle SDNR Valve - 300 Size
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

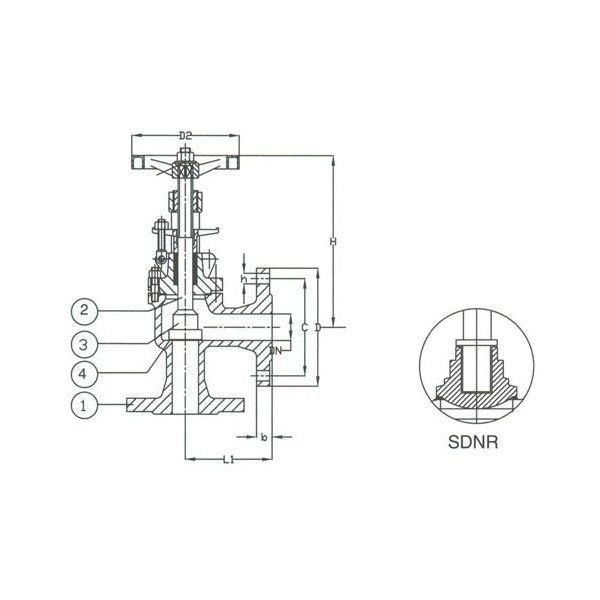

The PN 16 Ductile Iron Angle SDNR Valve is a robust and reliable solution for fluid control applications. Constructed with high-quality materials including Ductile Iron body, Stainless Steel seat and disc, and Stainless Steel stem, this valve ensures durability and longevity. With precise engineering meeting DIN standards, this valve offers efficient flow control and exceptional performance. The handwheel actuator provides easy manual operation, making it suitable for a wide range of industrial and institutional settings.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
410 mm
Specifications Connection
Flanged Drilled
Specifications D
460 mm
Specifications D2
500 mm
Specifications Disc Material
Stainless Steel
Specifications H
630 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications L1
375 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
300
Specifications Stem Material
Stainless Steel
Specifications T
26 mm
Specifications Weight
270 kg
