PN 16 Ductile Iron Angle Valve for DIN Applications
PN 16 Ductile Iron Angle Valve for DIN Applications
SKU:VAL-3cb325
Premium PN 16 Ductile Iron Valve for DIN Systems, Reliable Performance & Compliance
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Angle Valve for DIN Applications
$189.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Angle Valve for DIN Applications
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

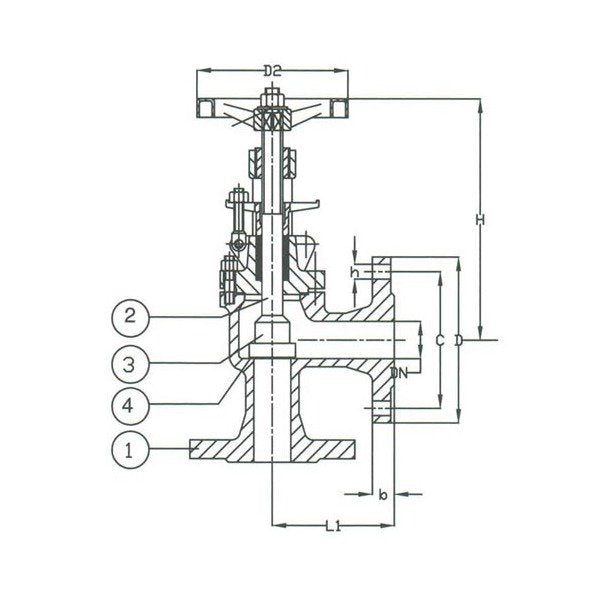

The PN 16 Ductile Iron Angle Valve is crafted with precision using GGG402 Ductile Iron for the body, durable Stainless Steel for the seat, disc, and stem, meeting stringent DIN 17672 standards. Ideal for industrial applications, this valve ensures reliable performance with its Brass or Stainless Steel seating options. Designed for ease of use, it features handwheel actuators and flanged drilling for secure connections. With dimensions meeting ISO5752 Series 8 standards and complying with DIN2501-PN16 flange requirements, this valve is a dependable choice for both consumer and institutional buyers.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
325 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
20 mm
Specifications Weight
32.0 kg
