PN 16 Ductile Iron Angle Valve - GGG402 Brass/Stainless Steel

Name: PN 16 Ductile Iron Angle Valve - GGG402 Brass/Stainless Steel
Brand: World Wide Metric, Inc.
SKU: VAL-0ca2bf
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-0ca2bf

Premium PN 16 Ductile Iron Angle Valve for hydraulic control, DIN standards compliant

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Ductile Iron Angle Valve is meticulously crafted with a Ductile Iron body, GGG402 Brass/Stainless Steel components, and Brass/Stainless Steel seating to ensure durability and optimal performance. Designed to meet DIN standards, this valve offers reliable hydraulic control and easy operation with a Handwheel actuator. Its precise measurements, sturdy Flanged Drilled connection, and compliance with industry regulations make it an ideal choice for both consumer and institutional applications.

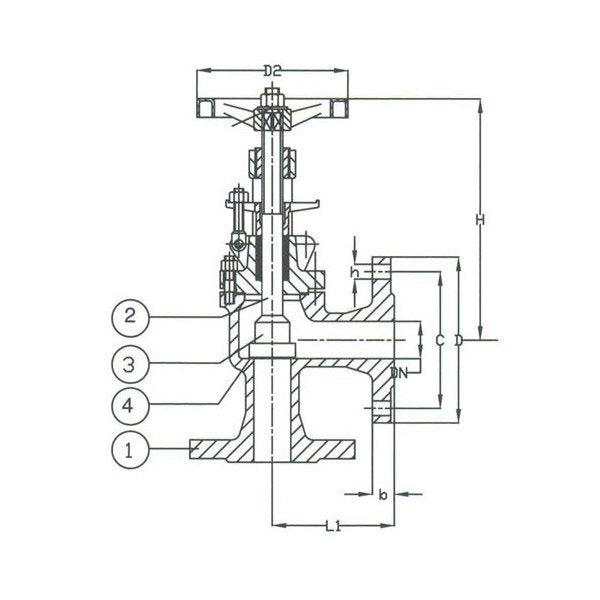

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

125 mm

Specifications Disc Material

Stainless Steel

Specifications H

170 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755419

Specifications L1

105.0 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

032

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

6.60 kg

PN 16 Ductile Iron Angle Valve - GGG402 Brass/Stainless Steel
