PN 16 Ductile Iron Globe Regular Valve - 125 Size
PN 16 Ductile Iron Globe Regular Valve - 125 Size
SKU:VAL-563627
Premium PN 16 Ductile Iron Globe Regular Valve - Reliable, Durable, and Compliant. Perfect for Critical Applications!
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Globe Regular Valve - 125 Size
$399.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Globe Regular Valve - 125 Size
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

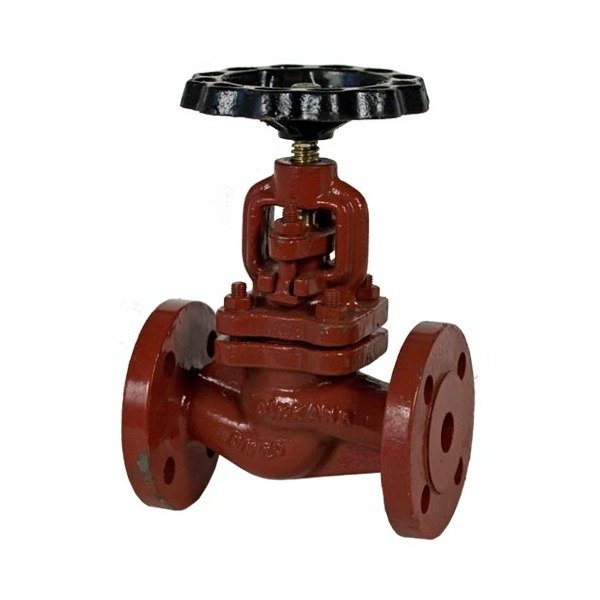

The PN 16 Ductile Iron Globe Regular Valve offers superior durability and performance in demanding industrial applications. Constructed with GGG402 Ductile Iron body, stainless steel disc, and brass seat, this valve ensures reliable operation. With compliance to DIN standards and precise engineering according to ISO5752, this valve guarantees optimal flow control and lasting efficiency. Ideal for both consumer and institutional use, the PN 16 Valve is a dependable choice for critical pipelines.

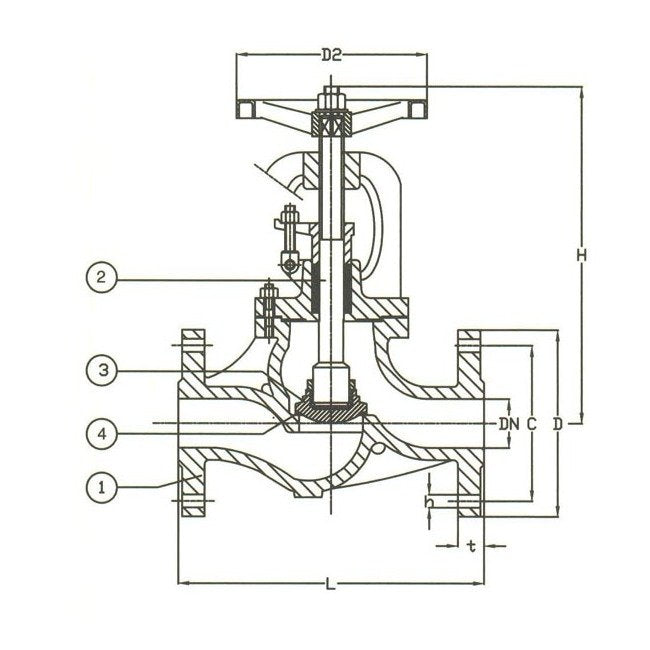

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
415 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755410
Specifications L
400 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
125
Specifications Stem Material
Brass
Specifications T
22 mm
Specifications Weight
55.0 kg
