PN 16 Ductile Iron Globe SDNR Valve - 025 Size

Name: PN 16 Ductile Iron Globe SDNR Valve - 025 Size
Brand: World Wide Metric, Inc.
SKU: VAL-8a1583
Price: 189.99 USD
Availability: OutOfStock

SKU:VAL-8a1583

Premium PN 16 Ductile Iron Globe SDNR Valve for precise hydraulic control in industrial applications.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

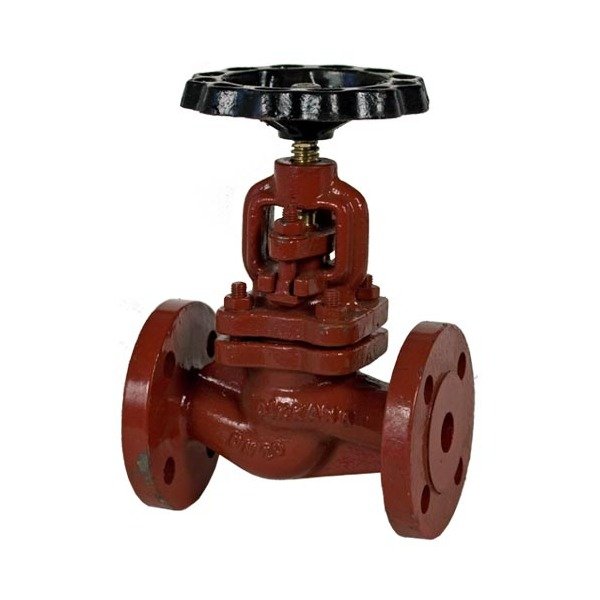

The PN 16 Ductile Iron Globe SDNR Valve is a reliable solution for fluid control applications. Constructed with Ductile Iron body, Stainless Steel seat, disc, and stem, it ensures durability and corrosion resistance. This valve, meeting ISO5752 standards, offers precise hydraulic control with a Handwheel actuator. With DIN2501-PN16 flanges and accurate dimensions, it guarantees seamless integration into systems, making it ideal for industrial and institutional settings.

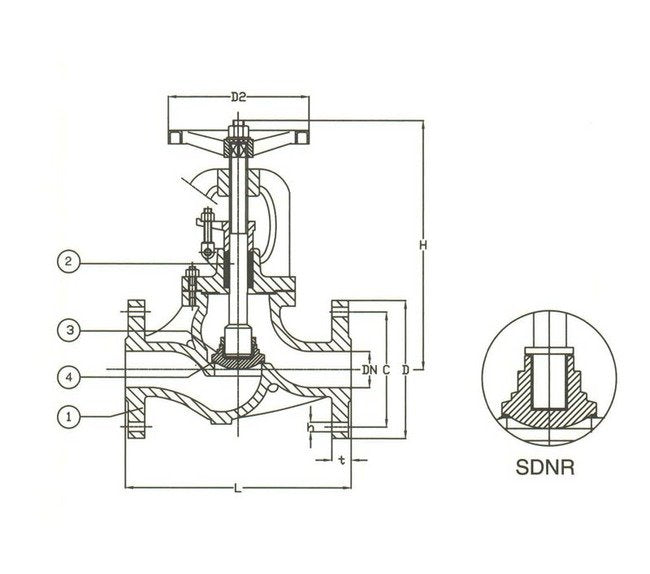

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

85 mm

Specifications Connection

Flanged Drilled

Specifications D

115 mm

Specifications D2

125 mm

Specifications Disc Material

Stainless Steel

Specifications H

190 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

160 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

025

Specifications Stem Material

Stainless Steel

Specifications T

16 mm

Specifications Weight

5.70 kg
