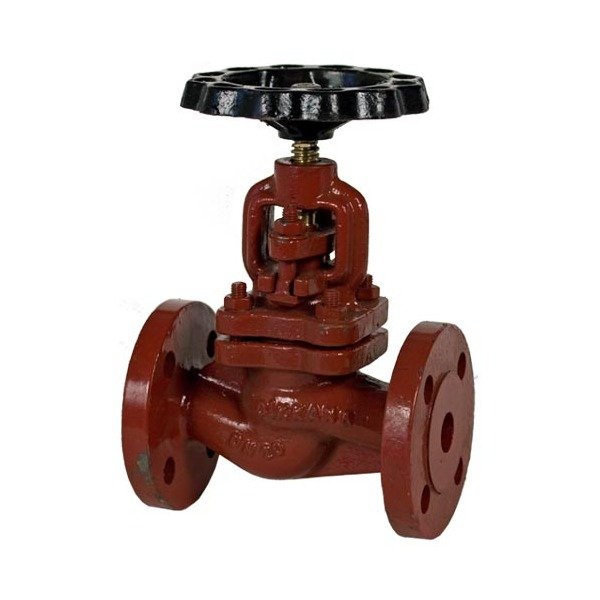

PN 16 Ductile Iron Globe SDNR Valve - 100mm Size
PN 16 Ductile Iron Globe SDNR Valve - 100mm Size
SKU:VAL-e9b865
Premium PN 16 Ductile Iron Globe SDNR Valve for industrial applications, offering reliable hydraulic performance and durability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Globe SDNR Valve - 100mm Size
$349.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Globe SDNR Valve - 100mm Size
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

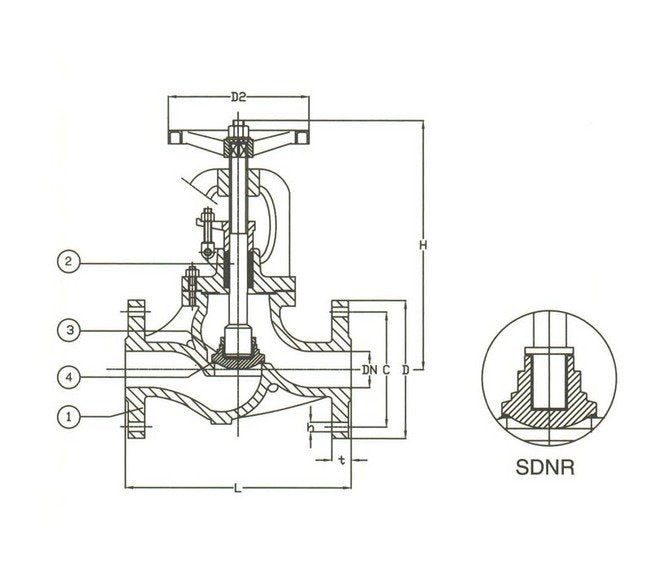

The PN 16 Ductile Iron Globe SDNR Valve features a durable construction with a Ductile Iron body, Brass stem, Stainless Steel disc, and Brass seat, meeting stringent DIN 17672 and INOX standards. With precise engineering, this valve offers reliable hydraulic performance and longevity. Designed for industrial applications, it ensures efficient flow control and optimal sealing. Face to Face dimensions comply with ISO5752 Series 1, and flanges adhere to DIN2501-PN16 standards.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
375 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
350 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
100
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
38.5 kg
