PN 16 Ductile Iron Globe SDNR Valve - 175 Size, PN16 DIN Flange

Name: PN 16 Ductile Iron Globe SDNR Valve - 175 Size, PN16 DIN Flange
Brand: World Wide Metric, Inc.
SKU: VAL-8fa0cb
Price: 499.99 USD
Availability: OutOfStock

SKU:VAL-8fa0cb

PN 16 Ductile Iron Globe SDNR Valve - High-quality valve for industrial fluid control.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

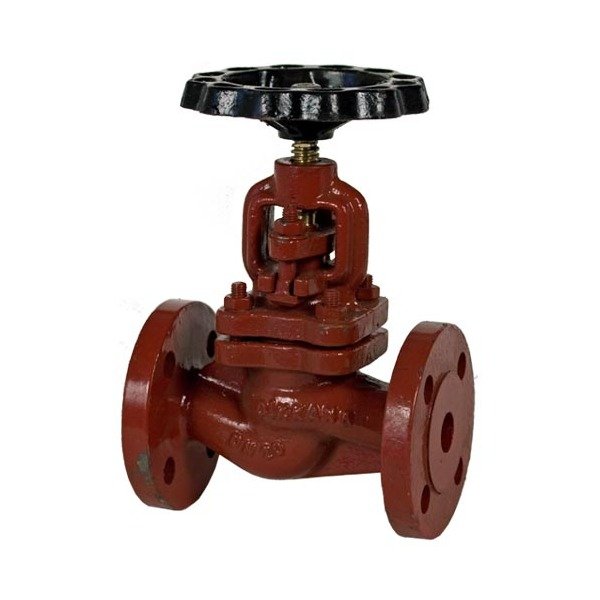

The PN 16 Ductile Iron Globe SDNR Valve is a durable solution for fluid control applications. Constructed with GGG402 Ductile Iron body, Brass seat, Stainless Steel disc, and a Brass stem, this valve ensures reliability and longevity. With compliance to DIN standards, including ISO5752 Series 1 face-to-face dimensions and DIN2501-PN16 flange specifications, it meets the stringent requirements of institutional buyers. The handwheel actuator provides easy manual operation, making it a versatile choice for various industrial settings.

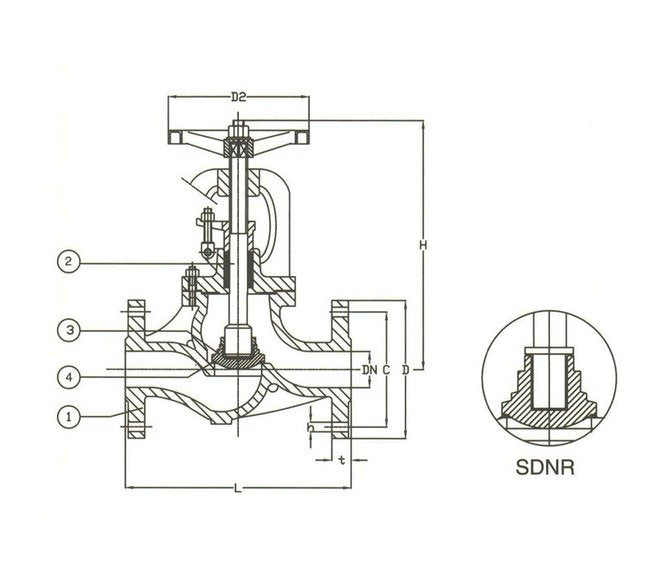

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

270 mm

Specifications Connection

Flanged Drilled

Specifications D

315 mm

Specifications D2

300 mm

Specifications Disc Material

Stainless Steel

Specifications H

550 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

550 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

175

Specifications Stem Material

Brass

Specifications T

24 mm

Specifications Weight

110.0 kg

PN 16 Ductile Iron Globe SDNR Valve - 175 Size, PN16 DIN Flange
