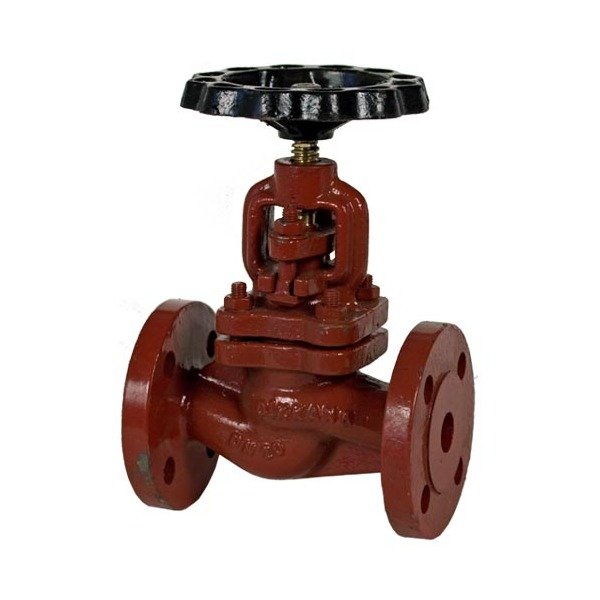

PN 16 Ductile Iron Globe SDNR Valve - 200 Size
PN 16 Ductile Iron Globe SDNR Valve - 200 Size
SKU:VAL-5881a5
Reliable PN 16 Ductile Iron Globe SDNR Valve - 200 Size for industrial fluid control applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Globe SDNR Valve - 200 Size
$599.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Globe SDNR Valve - 200 Size
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Ductile Iron Globe SDNR Valve provides exceptional durability and reliability for fluid control applications. Constructed with Ductile Iron body, Brass stem, Stainless Steel disc, and Brass seat, it meets DIN 17672 standards. Featuring Handwheel actuators and Flanged Drilled connection, this valve ensures smooth operation and easy installation. With precise dimensions conforming to ISO5752 Series 1 and DIN2501-PN16 flange standards, this valve is an ideal choice for industrial and institutional settings requiring high-quality performance.

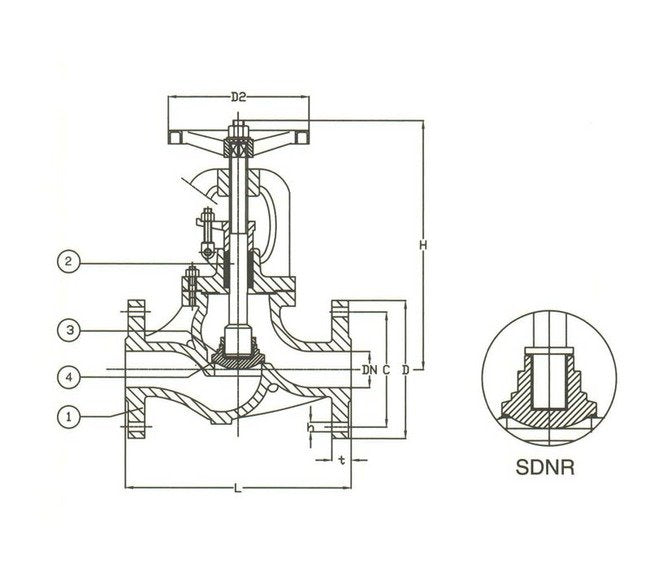

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications D2
420 mm
Specifications Disc Material
Stainless Steel
Specifications H
570 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
600 mm
Specifications Number Of Holes
12
Specifications Seat Material
Brass
Specifications Size
200
Specifications Stem Material
Brass
Specifications T
24 mm
Specifications Weight
125 kg
