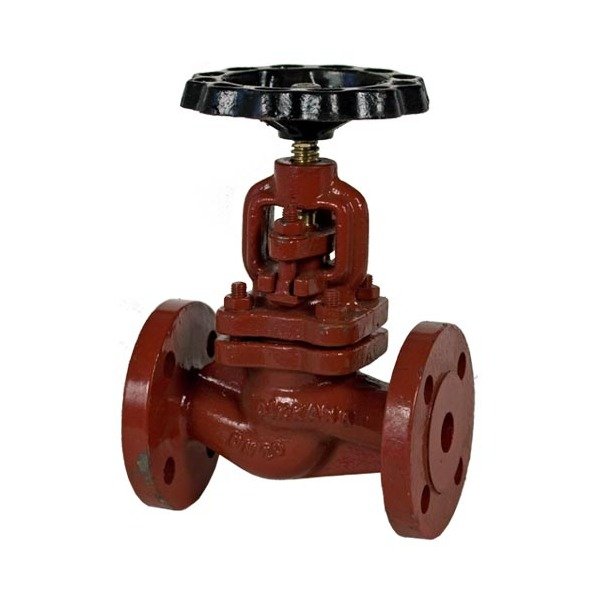

PN 16 Ductile Iron Globe SDNR Valve - 200 Size

Name: PN 16 Ductile Iron Globe SDNR Valve - 200 Size
Brand: World Wide Metric, Inc.
SKU: VAL-f07314
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-f07314

Reliable PN 16 Ductile Iron Globe SDNR Valve with Ductile Iron body, Stainless Steel seat & disc. Compliant with DIN standards for precise fluid control.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Ductile Iron Globe SDNR Valve is a reliable solution for fluid control applications. Constructed with durable Ductile Iron body, Stainless Steel seat, and disc, this valve ensures long-term performance and corrosion resistance. Compliant with DIN standards, it offers precise hydraulic inspection ratings and optimal dimensions for seamless integration. The Handwheel actuator provides manual control, while the Flanged Drilled connection simplifies installation. Trust in this valve's quality craftsmanship and adherence to industry standards for your institutional needs.

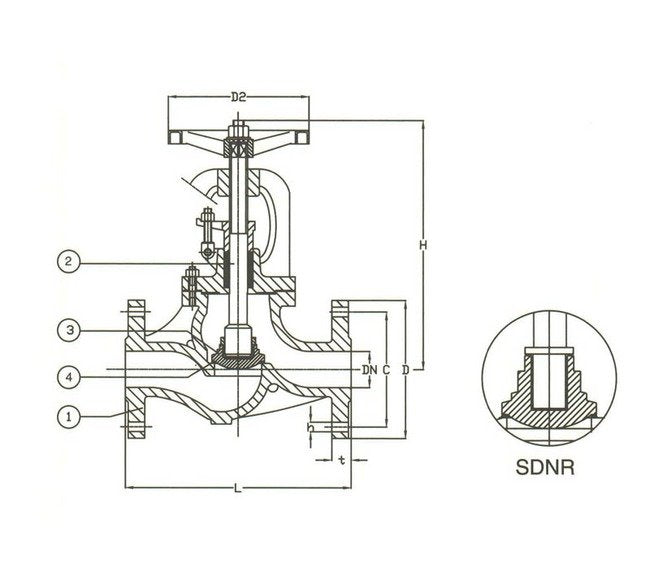

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

295 mm

Specifications Connection

Flanged Drilled

Specifications D

340 mm

Specifications D2

420 mm

Specifications Disc Material

Stainless Steel

Specifications H

570 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

600 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

200

Specifications Stem Material

Stainless Steel

Specifications T

24 mm

Specifications Weight

125 kg

PN 16 Ductile Iron Globe SDNR Valve - 200 Size
