PN 16 Ductile Iron Globe SDNR Valve - 250mm Size

Name: PN 16 Ductile Iron Globe SDNR Valve - 250mm Size
Brand: World Wide Metric, Inc.
SKU: VAL-47c7f6
Price: 699.99 USD
Availability: OutOfStock

SKU:VAL-47c7f6

Premium PN 16 Ductile Iron Globe SDNR Valve - Reliable, Durable, and Easy to Install

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

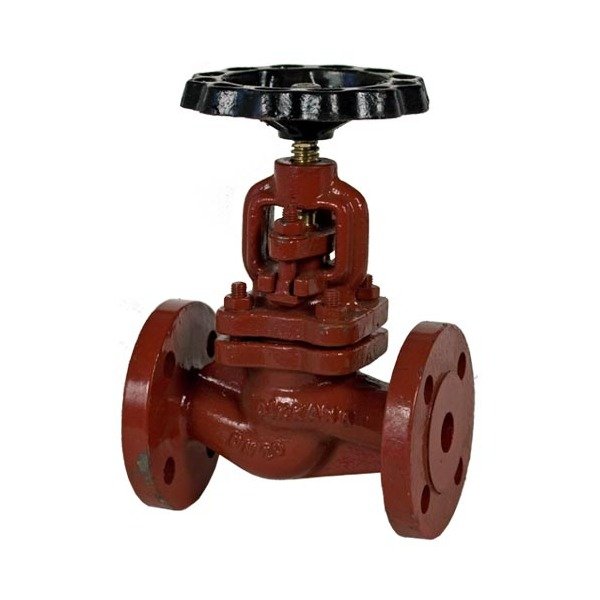

The PN 16 Ductile Iron Globe SDNR Valve is a robust and reliable solution for fluid control applications. Crafted from high-quality materials including Ductile Iron body, Stainless Steel seat, and disc, this valve ensures durability and corrosion resistance. With features like a Brass stem and Flanged Drilled connection for easy installation, this valve meets ISO5752 Series 1 standards for Face to Face dimensions and DIN2501-PN16 for Flanges. Suitable for various industrial settings, this valve offers smooth operation and long-lasting performance.

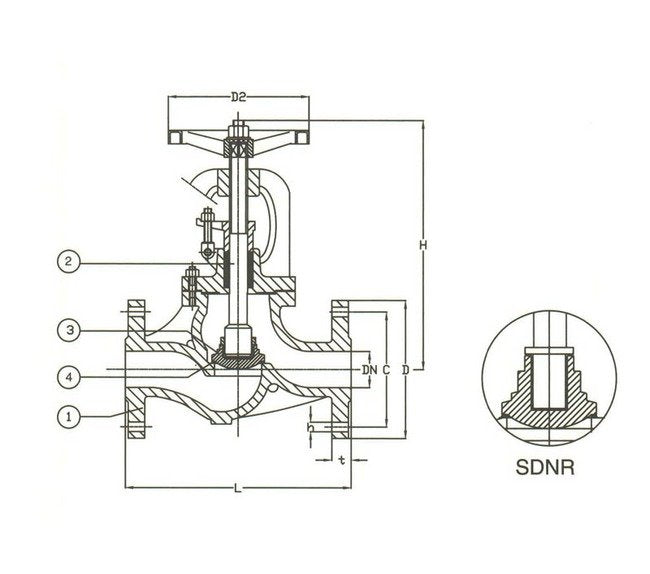

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

355 mm

Specifications Connection

Flanged Drilled

Specifications D

405 mm

Specifications D2

500 mm

Specifications Disc Material

Stainless Steel

Specifications H

750 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

730 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

250

Specifications Stem Material

Stainless Steel

Specifications T

26 mm

Specifications Weight

250 kg
