PN 16 Ductile Iron Globe SDNR Valve - DIN 2501 PN16

Name: PN 16 Ductile Iron Globe SDNR Valve - DIN 2501 PN16
Brand: World Wide Metric, Inc.
SKU: VAL-19c3f4
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-19c3f4

Reliable PN 16 Ductile Iron Globe SDNR Valve with Ductile Iron body, Stainless Steel seat & disc, compliant with DIN standards.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

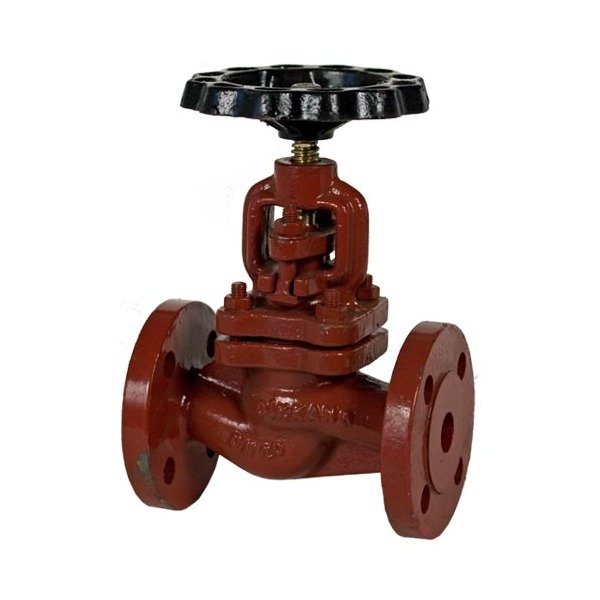

The PN 16 Ductile Iron Globe SDNR Valve is a robust and reliable valve designed for industrial applications. Constructed with Ductile Iron body, Stainless Steel seat, and disc, this valve ensures durability and corrosion resistance. It features a Brass stem, suitable for hydraulic applications. With compliance to DIN 17672 standards, this valve offers precision and performance, making it ideal for fluid control in diverse settings. The Handwheel actuator provides easy operation, while the Flanged Drilled connection ensures secure installation.

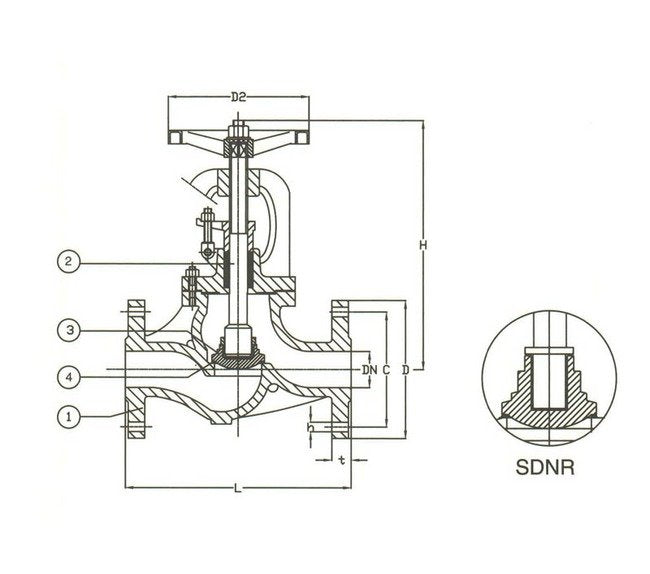

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Stainless Steel

Specifications H

375 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

350 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

100

Specifications Stem Material

Stainless Steel

Specifications T

20 mm

Specifications Weight

38.5 kg

PN 16 Ductile Iron Globe SDNR Valve - DIN 2501 PN16
