PN 16 Ductile Iron Globe SDNR Valve - DIN 2501-PN16 Certified

Name: PN 16 Ductile Iron Globe SDNR Valve - DIN 2501-PN16 Certified
Brand: World Wide Metric, Inc.
SKU: VAL-789c10
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-789c10

Reliable PN 16 Ductile Iron Globe SDNR Valve with DIN 2501-PN16 certification for precise hydraulic control

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

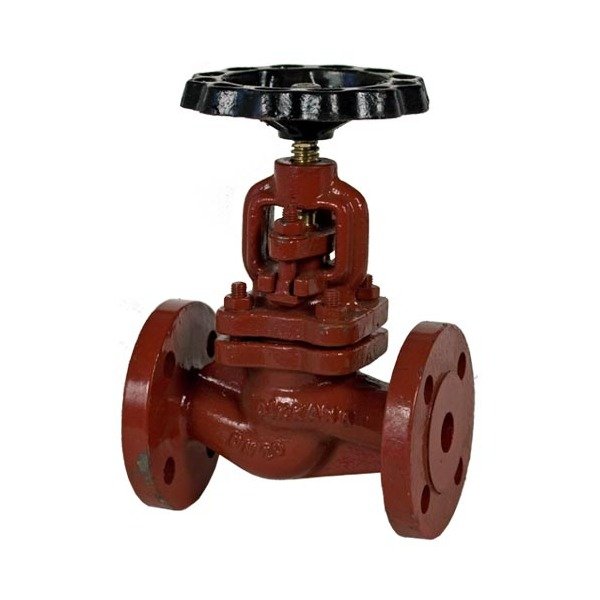

The PN 16 Ductile Iron Globe SDNR Valve is an essential component for efficient fluid control systems. Constructed with high-quality materials including Ductile Iron, Stainless Steel, and Brass, this valve ensures durability and reliability. With precise dimensions meeting ISO5752 Series 1 standards and DIN 2501-PN16 flange compatibility, it offers seamless integration and optimal performance. The valve features a handwheel actuator for easy manual operation, making it ideal for industrial applications requiring precise hydraulic control. Trust in this valve for smooth fluid regulation and adherence to stringent industry standards.

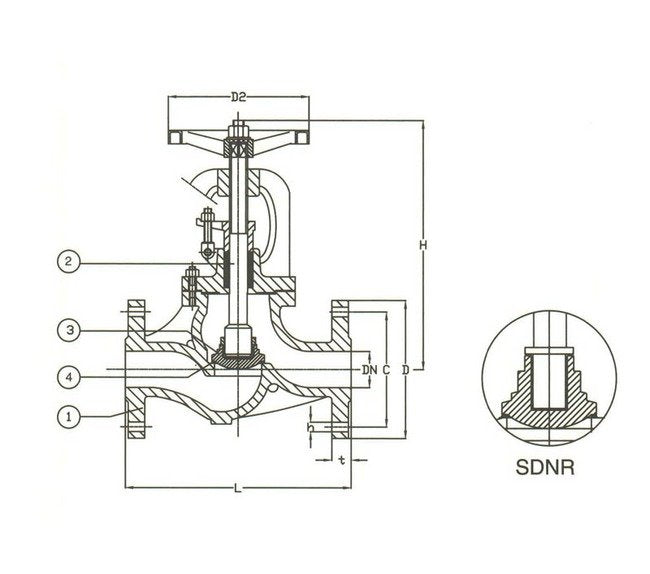

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

125 mm

Specifications Disc Material

Stainless Steel

Specifications H

200 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

180 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

032

Specifications Stem Material

Stainless Steel

Specifications T

16 mm

Specifications Weight

8.2 kg
