PN 16 Ductile Iron Globe SDNR Valve - DIN Certified
PN 16 Ductile Iron Globe SDNR Valve - DIN Certified
SKU:VAL-01a2ec
Premium PN 16 Ductile Iron Globe SDNR Valve, ISO and DIN certified for durability and precision control.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Globe SDNR Valve - DIN Certified
$289.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Globe SDNR Valve - DIN Certified
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

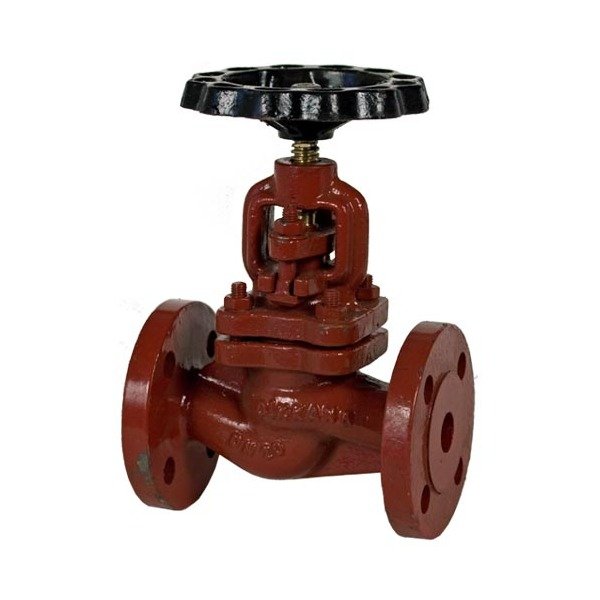

The PN 16 Ductile Iron Globe SDNR Valve is crafted with precision using durable materials - Ductile Iron body, Brass stem and seat, and Stainless Steel disc. Meeting ISO5752 and DIN2501-PN16 standards, this valve ensures reliable performance in industrial environments. Ideal for controlling flow, it offers a secure seal and easy operation with a Handwheel actuator. Trust in its quality for long-lasting efficiency.

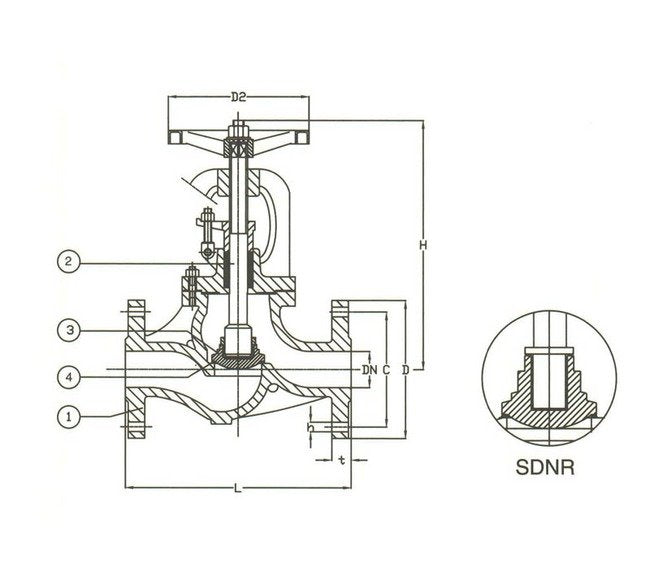

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
125 mm
Specifications Disc Material
Stainless Steel
Specifications H
200 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
180 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
032
Specifications Stem Material
Brass
Specifications T
16 mm
Specifications Weight
8.2 kg
