PN 16 Ductile Iron Globe Valve
PN 16 Ductile Iron Globe Valve
SKU:VAL-f56628
High-quality PN 16 Ductile Iron Globe Valve for reliable hydraulic control in industrial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
PN 16 Ductile Iron Globe Valve
$299.99
Quantity: 1
Claim Your Seller Account
PN 16 Ductile Iron Globe Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Ductile Iron Globe Valve is expertly crafted with a Ductile Iron body, Stainless Steel seat and disc, and a Brass stem. Compliant with DIN 17672 standards, this valve ensures reliable performance in hydraulic systems. Featuring a Handwheel actuator and Flanged Drilled connection, it offers precise control and easy installation. With dimensions meeting ISO5752 Series 1 for Face to Face and DIN2501-PN16 for flanges, this valve is an ideal choice for industrial applications requiring durability and efficiency.

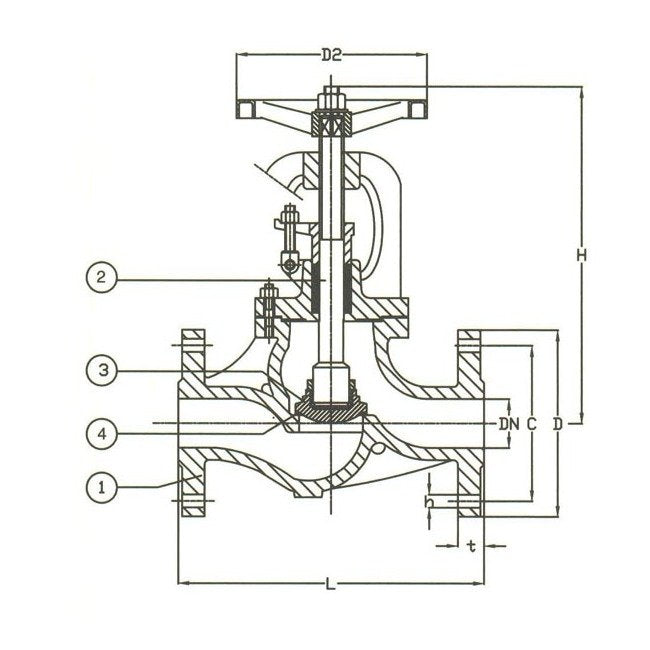

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Ductile Iron
Specifications C
240 mm
Specifications Connection
Flanged Drilled
Specifications D
285 mm
Specifications D2
300 mm
Specifications Disc Material
Stainless Steel
Specifications H
460 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
480 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
150
Specifications Stem Material
Stainless Steel
Specifications T
22 mm
Specifications Weight
78.00 kg
