PN 16 Ductile Iron Globe Valve - DIN Certified

Name: PN 16 Ductile Iron Globe Valve - DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-544fe2
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-544fe2

Premium PN 16 Ductile Iron Globe Valve with DIN Certification for industrial reliability.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

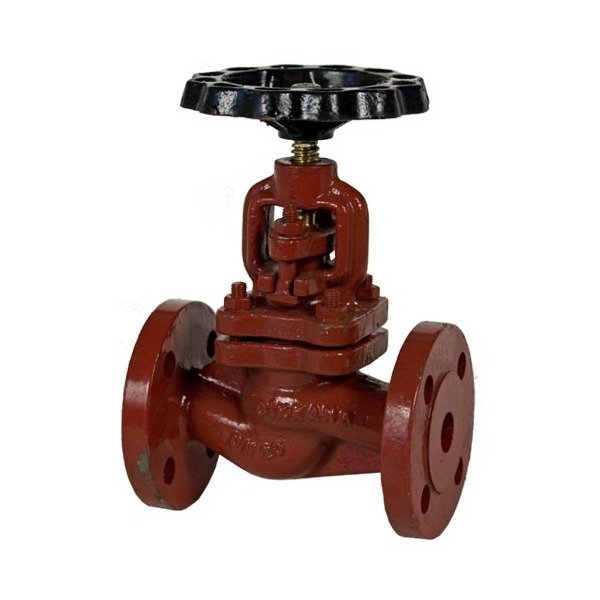

The PN 16 Ductile Iron Globe Regular Valve is built for durability and reliability, featuring a Ductile Iron body, Stainless Steel seat, disc, and stem. This valve conforms to DIN 17672 standards and boasts precise hydraulic inspections. Ideal for industrial applications requiring high performance and longevity.

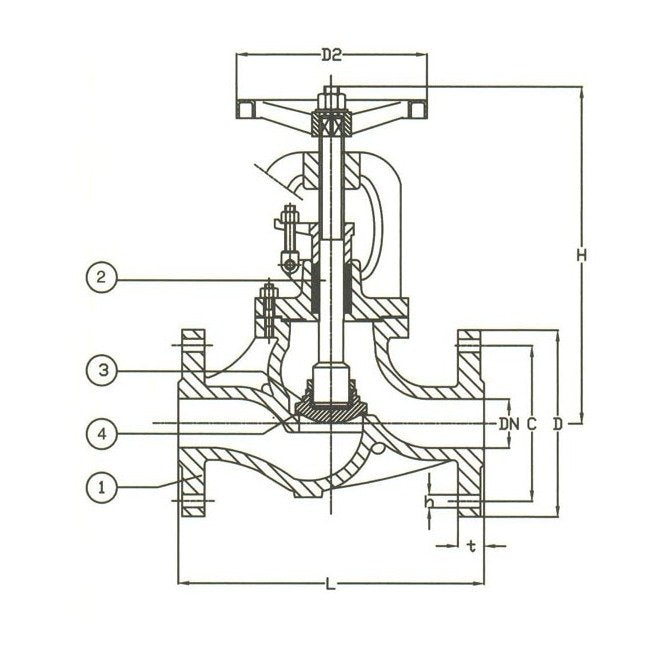

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Ductile Iron

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

150 mm

Specifications Disc Material

Stainless Steel

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

230 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

050

Specifications Stem Material

Stainless Steel

Specifications T

18 mm

Specifications Weight

13.5 kg

PN 16 Ductile Iron Globe Valve - DIN Certified
