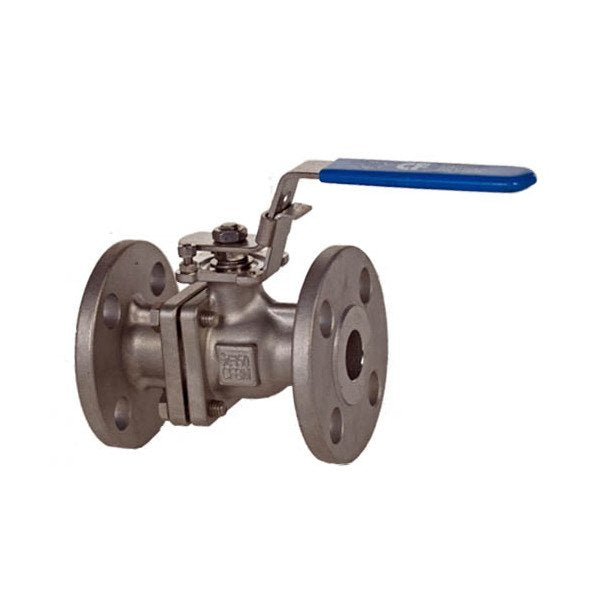

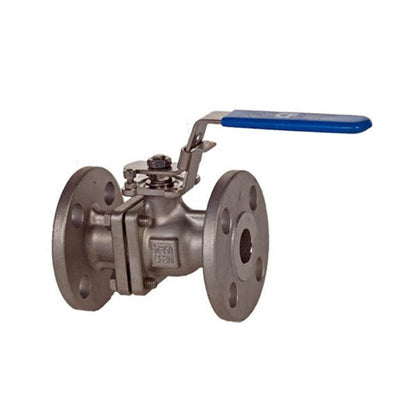

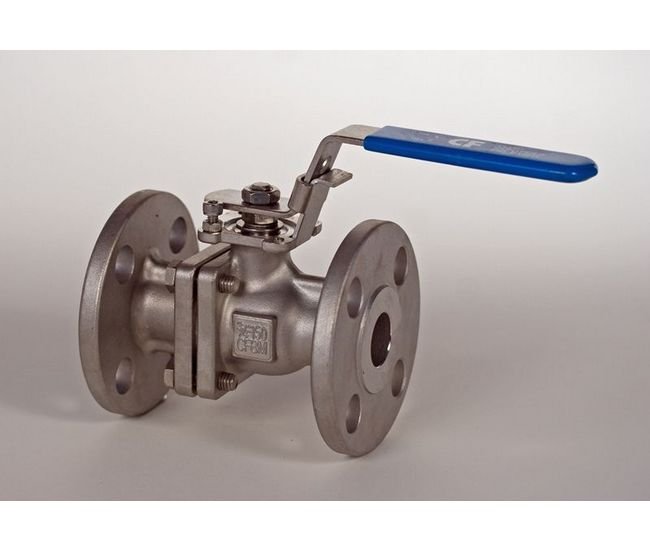

PN 16 Full Bore Ball Cast Iron Valve - DIN Ball Valve

Name: PN 16 Full Bore Ball Cast Iron Valve - DIN Ball Valve
Brand: World Wide Metric, Inc.
SKU: VAL-e5ced1
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-e5ced1

Durable PN 16 Full Bore Ball Cast Iron Valve for precise hydraulic control in industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Full Bore Ball Cast Iron Valve is a robust and reliable solution for fluid control in industrial settings. Constructed with a Cast Iron body and Brass ball, this valve ensures durability and optimal performance. The Teflon or PTFE/Stainless Steel seat enhances sealing, meeting stringent DIN 3202-F4/5 standards. With dimensions compliant with DIN2501-PN16, this valve offers precise hydraulic control and easy installation.

Product Specifications

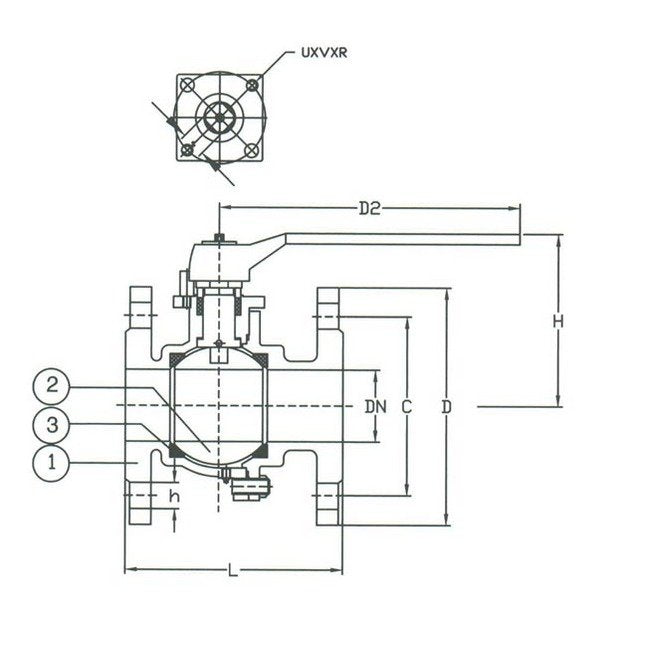

Specifications Actuators

Lever

Specifications Body Material

Cast Iron

Specifications C

145 mm

Specifications D

185 mm

Specifications D2

333 mm

Specifications H

140 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

756691

Specifications L

170 mm

Specifications Number Of Holes

Specifications Seat Material

Synthetic Material

Specifications Size

065

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

11.5 kg

PN 16 Full Bore Ball Cast Iron Valve - DIN Ball Valve
