PN 16 Full Bore Ball Cast Iron Valve - DIN Ball Valve

Name: PN 16 Full Bore Ball Cast Iron Valve - DIN Ball Valve
Brand: World Wide Metric, Inc.
SKU: VAL-016ba7
Price: 109.99 USD
Availability: OutOfStock

SKU:VAL-016ba7

Durable PN 16 Full Bore Cast Iron Valve for industrial use, meets DIN standards.

$109.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

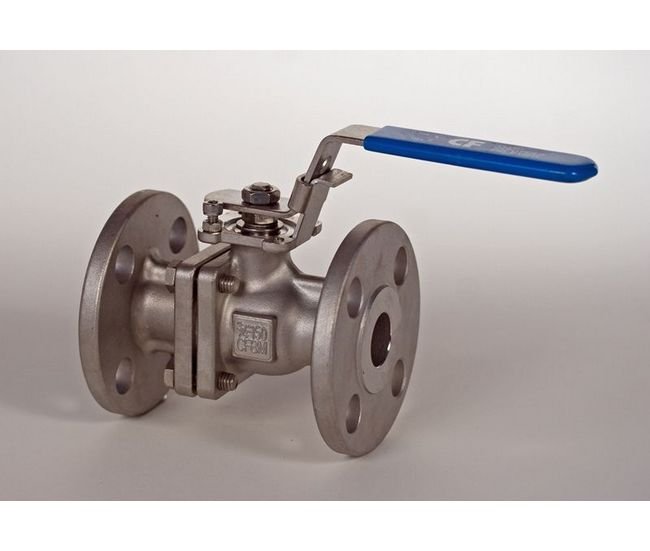

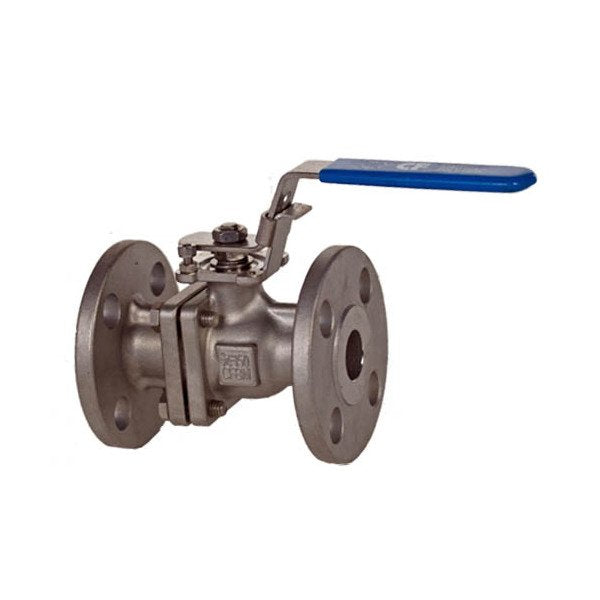

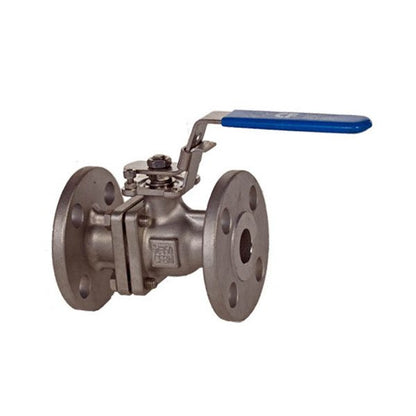

The PN 16 Full Bore Ball Cast Iron Valve features a robust design with a GG252 Cast Iron body and Brass ball, ensuring durability and reliable performance in industrial environments. Its Teflon/PTFE or Stainless Steel seat provides a tight seal, conforming to DIN standards. Suitable for hydraulic applications, this valve is equipped with a lever actuator for easy operation. With a weight of 8.5 kg and dimensions meeting DIN 3202-F4/5 and DIN2501-PN16 standards, this valve is a versatile choice for institutional and government projects.

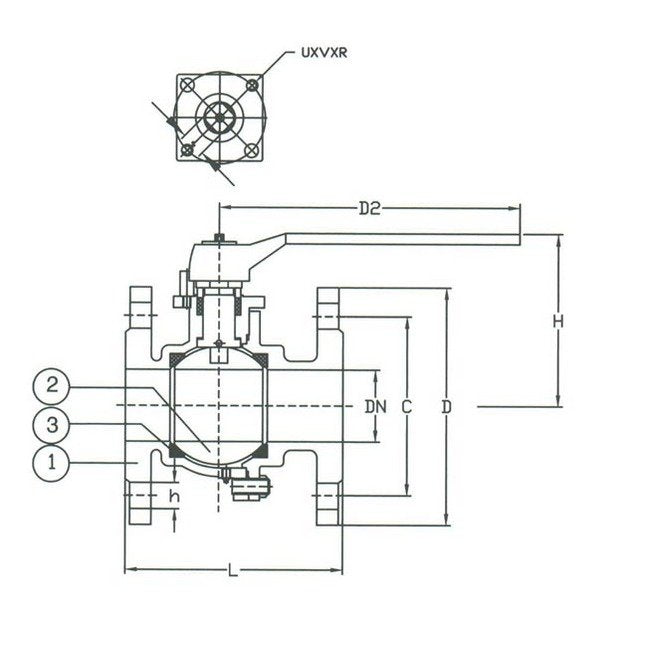

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Iron

Specifications C

125 mm

Specifications D

165 mm

Specifications D2

333 mm

Specifications H

130 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

756690

Specifications L

150 mm

Specifications Number Of Holes

Specifications Seat Material

Synthetic Material

Specifications Size

050

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

8.5 kg
