PN 16 Stainless Steel Swing Check Valve, Wafer Style Short

Name: PN 16 Stainless Steel Swing Check Valve, Wafer Style Short
Brand: World Wide Metric, Inc.
SKU: VAL-4ab8df
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-4ab8df

Premium PN 16 Stainless Steel Swing Check Valve with NBR/EPDM/Viton/Teflon Seat. DIN2501-PN16 compliant.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Stainless Steel Swing Check Valve features a durable Stainless Steel body (AISI 316L) with a Disc available in Gunmetal or Stainless Steel options. The Seat is made of NBR, EPDM, Viton, or Teflon, ensuring reliable performance. Flanges conform to DIN2501-PN16 standards, making it suitable for a range of applications. With a size of 200 and Stem Material in Brass, this valve is designed for optimal hydraulic performance and easy installation.

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Stainless Steel

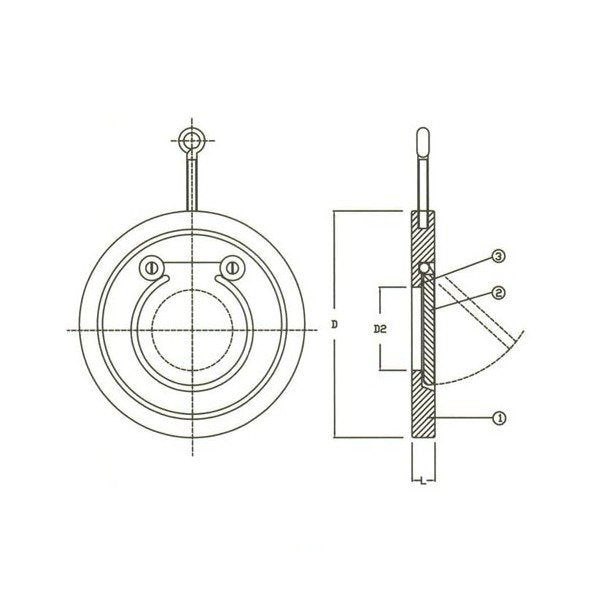

Specifications D

276 mm

Specifications D2

143 mm

Specifications Disc Material

Bronze | Stainless Steel

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

29.0 mm

Specifications Seat Material

Synthetic Material

Specifications Size

200

Specifications Stem Material

Brass

Specifications Weight

11.0 kg

PN 16 Stainless Steel Swing Check Valve, Wafer Style Short
