PN 16 Swing Check Valves - Bronze Wafer Style Short Valve
PN 16 Swing Check Valves - Bronze Wafer Style Short Valve
SKU:VAL-1a1e72
Durable PN 16 Swing Check Valve in Bronze for reliable fluid control - DIN2501-PN16 compliant.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
PN 16 Swing Check Valves - Bronze Wafer Style Short Valve
$139.99
Quantity: 1
Claim Your Seller Account
PN 16 Swing Check Valves - Bronze Wafer Style Short Valve
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

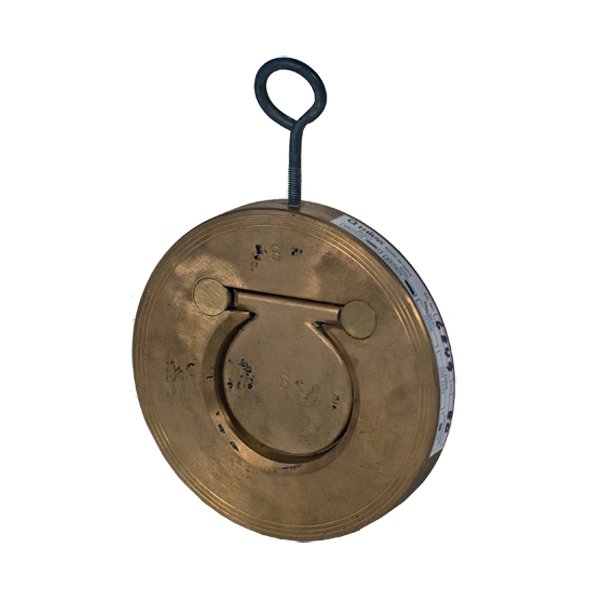

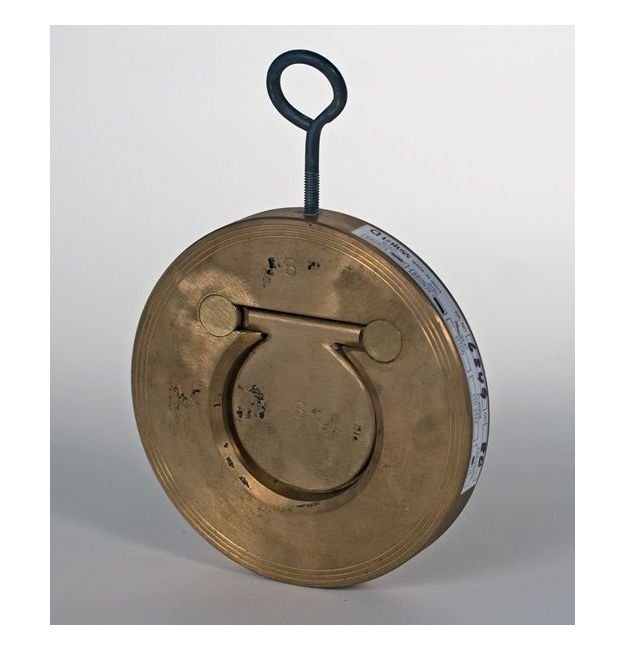

The PN 16 Swing Check Valves in Bronze offer durability and reliability for fluid control applications. Featuring a Gunmetal body, a choice of Gunmetal or Stainless Steel disc, and NBR, EPDM, Viton, or PTFE seat options, this valve conforms to DIN standards and fits DIN2501-PN16 flanges. With a size of 125, Brass stem, and weighing 3.00 kg, this valve is gravity-actuated, suitable for hydraulic inspection, and has IMPA/ISSA Code: 755981.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze

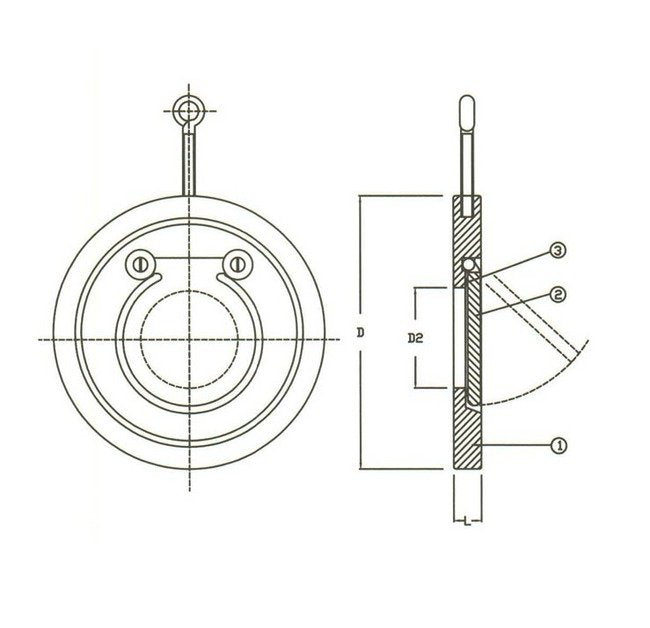

Specifications D
195 mm
Specifications D2
92 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755981
Specifications L
19 mm
Specifications Seat Material
Synthetic Material
Specifications Size
125
Specifications Stem Material
Brass
Specifications Weight
3.00 kg
