PN 16 Wafer Check Valves - Carbon Steel - Stainless Steel Disc - DIN2501-PN16

Name: PN 16 Wafer Check Valves - Carbon Steel - Stainless Steel Disc - DIN2501-PN16
Brand: World Wide Metric, Inc.
SKU: VAL-a97511
Price: 59.99 USD
Availability: OutOfStock

SKU:VAL-a97511

Dependable PN 16 Wafer Check Valve with Carbon Steel Body & Stainless Steel Disc for industrial reliability.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 16 Wafer Check Valve with a wafer-style design and long valve body is crafted for durability and performance. Featuring a Carbon Steel body, Stainless Steel disc, and Viton seat, it ensures reliable operation in varied conditions. This valve is compliant with DIN standards, designed to facilitate easy mounting between flanges. The Stainless Steel arm, AISI 316L materials, and Gravity actuators enhance its longevity and functionality, making it an ideal choice for industrial applications requiring precision and resilience.

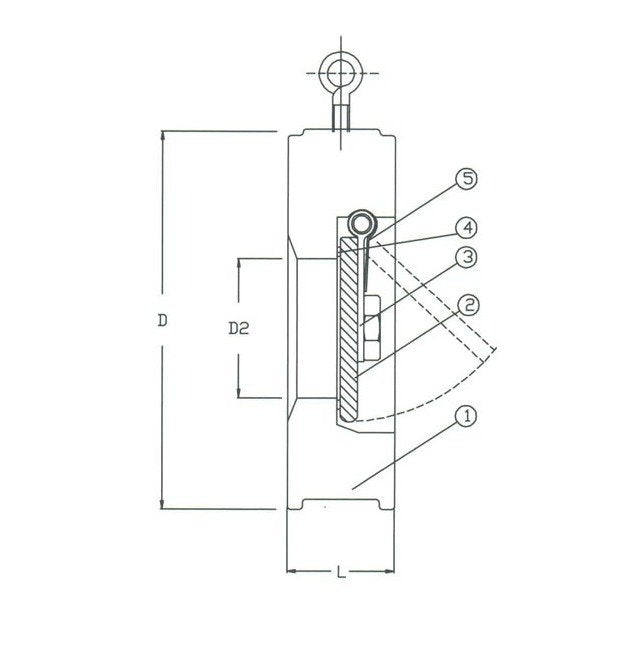

Product Specifications

Specifications Actuators

Gravity

Specifications Body Material

Carbon Steel

Specifications D

109 mm

Specifications D2

33 mm

Specifications Disc Material

Stainless Steel

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

755961

Specifications L

45.0 mm

Specifications Seat Material

Synthetic Material

Specifications Size

050

Specifications Stem Material

Stainless Steel

Specifications Weight

1.8 kg

PN 16 Wafer Check Valves - Carbon Steel - Stainless Steel Disc - DIN2501-PN16
