PN 16 Wafer Check Valves for DIN2501-PN16 Flange Mounting
PN 16 Wafer Check Valves for DIN2501-PN16 Flange Mounting
SKU:VAL-a718de
Durable PN 16 Wafer Check Valve for DIN2501-PN16 standards, featuring Carbon Steel body, Stainless Steel Disc, and Viton Seat.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PN 16 Wafer Check Valves for DIN2501-PN16 Flange Mounting
$799.99
Quantity: 1
Claim Your Seller Account
PN 16 Wafer Check Valves for DIN2501-PN16 Flange Mounting
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

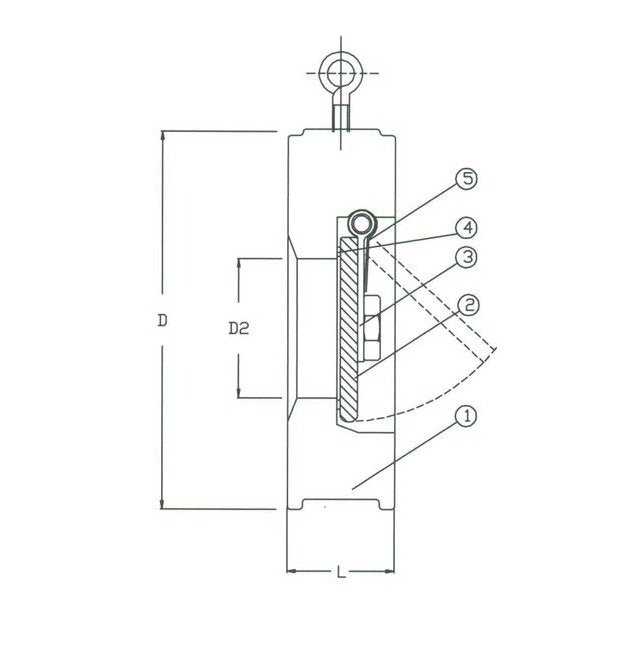

The PN 16 Wafer Check Valve is designed for seamless integration between flanges according to Din2501-PN16 standards. Crafted with a Carbon Steel body, Stainless Steel Disc, and Arm, along with Viton Seat and Stainless Steel Spring, this valve ensures durability and reliability. With a compact design of L108mm and D558mm, it offers a Hydraulic Inspection rating of 16 for the body and 10 for the seat, meeting rigorous industry demands. Suitable for various applications, the PN 16 Wafer Check Valve guarantees long-lasting performance.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Carbon Steel
Specifications D
558 mm
Specifications D2
356 mm
Specifications Disc Material
Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
755972
Specifications L
108 mm
Specifications Seat Material
Synthetic Material
Specifications Size
450
Specifications Stem Material
Stainless Steel
Specifications Weight
100.0 kg
