PN 16 Y-Strainers, Cast Iron - DIN Valves
PN 16 Y-Strainers, Cast Iron - DIN Valves
SKU:VAL-6b236c
Reliable PN 16 Y-Strainers, Cast Iron for efficient pipeline filtration, DIN standard compliant.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
PN 16 Y-Strainers, Cast Iron - DIN Valves
$159.99
Quantity: 1
Claim Your Seller Account
PN 16 Y-Strainers, Cast Iron - DIN Valves
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

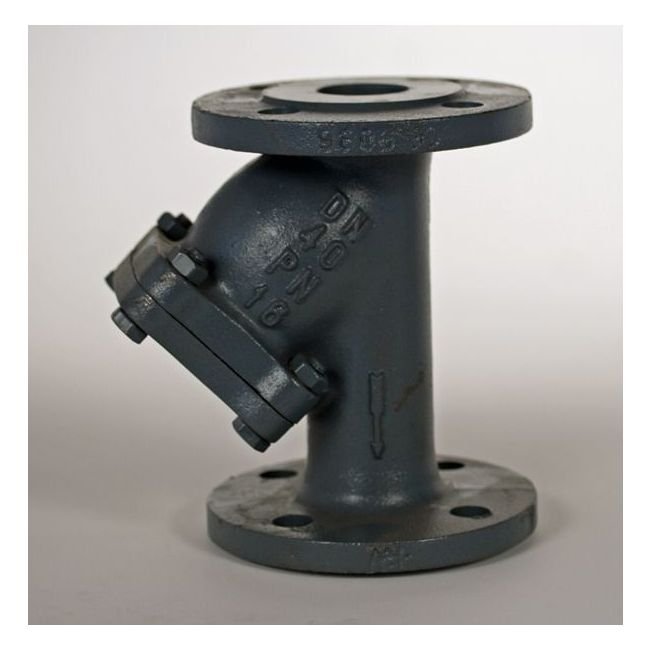

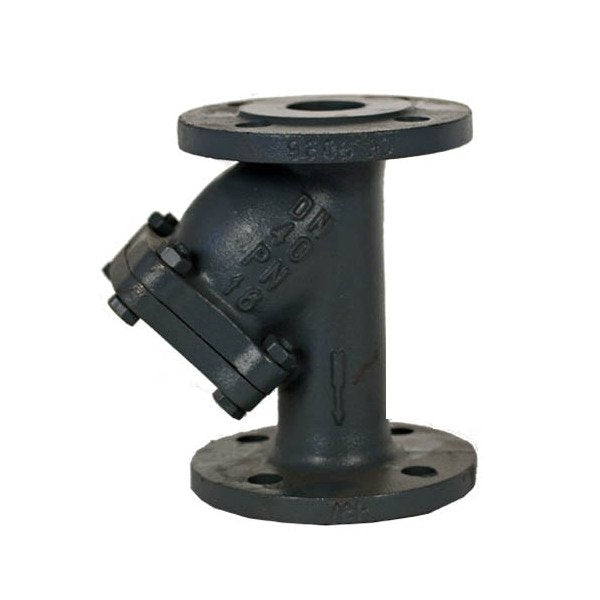

The PN 16 Y-Strainers, Cast Iron is a robust solution for filtering debris in pipelines, featuring a Cast Iron body and Stainless Steel strainer meeting stringent DIN standards. With precise specifications including 040 size, DIN2501-PN16 flanges, and AISI 304 Stainless Steel components, this strainer ensures reliable performance and durability, ideal for industrial applications.
Ready to Grow Without Cash Flow Constraints?

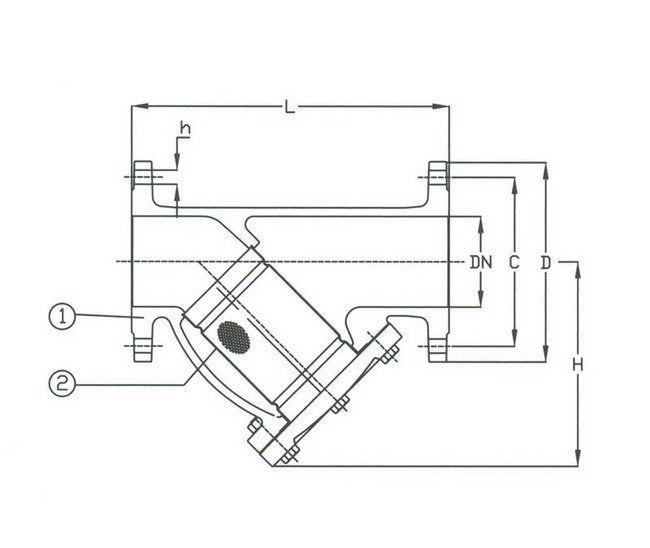

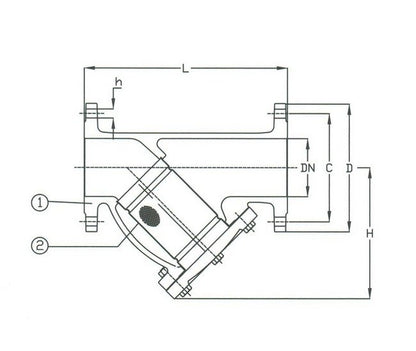

Product Specifications
Specifications Body Material
Cast Iron
Specifications C
110 mm
Specifications D
150 mm
Specifications H
110 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
200 mm
Specifications Number Of Holes
4
Specifications Size
040
Specifications T
16 mm
Specifications Weight
9.0 kg
