PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160

Name: PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
Brand: World Wide Metric, Inc.
SKU: VAL-4ac481
Price: 149.99 USD
Availability: OutOfStock

SKU:VAL-4ac481

Durable PN 160 Cast Steel Globe Regular Valve for industrial use. Meets ISO5752 and DIN2501 standards.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe Regular Valve is expertly designed for durability and performance in industrial settings. Constructed with a cast steel body and stainless steel components, including Stellited disc and seat, this valve ensures longevity and efficient operation. Meeting ISO5752 and DIN2501-PN160 standards, it offers reliable hydraulic performance and precise dimensions for seamless integration into systems. With a weight of 9.0 kg and dimensions of 210mm x 105mm x 75mm, this valve is ideal for critical applications where quality and compliance are paramount.

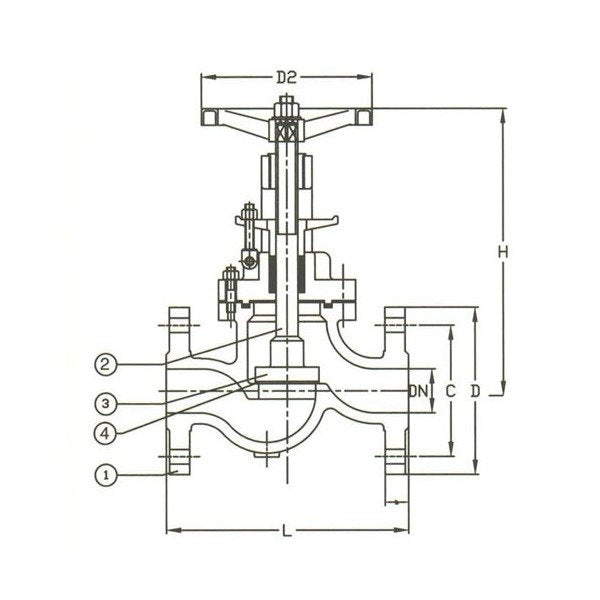

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

75 mm

Specifications Connection

Flanged Drilled

Specifications D

105 mm

Specifications D2

150 mm

Specifications Disc Material

Stellited

Specifications H

250 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications Impaissa Code

755432

Specifications L

210 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

015

Specifications Stem Material

Stellite

Specifications T

20 mm

Specifications Weight

9.0 kg

PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
