PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
SKU:VAL-35bcc6
Premium PN 160 Cast Steel Globe Regular Valve for high-pressure industrial use, ISO5752 & DIN2501-PN160 compliant.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
$389.99
Quantity: 1
Claim Your Seller Account
PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 160 Cast Steel Globe Regular Valve is designed for precision and durability in industrial applications. Constructed with a Cast Steel body, Stellited disc, and Stainless Steel seat, this valve ensures reliable performance under high pressure. Its compliance with ISO5752 standards, DIN2501-PN160 flanges, and handwheel actuators make it ideal for institutional and government procurement needs.

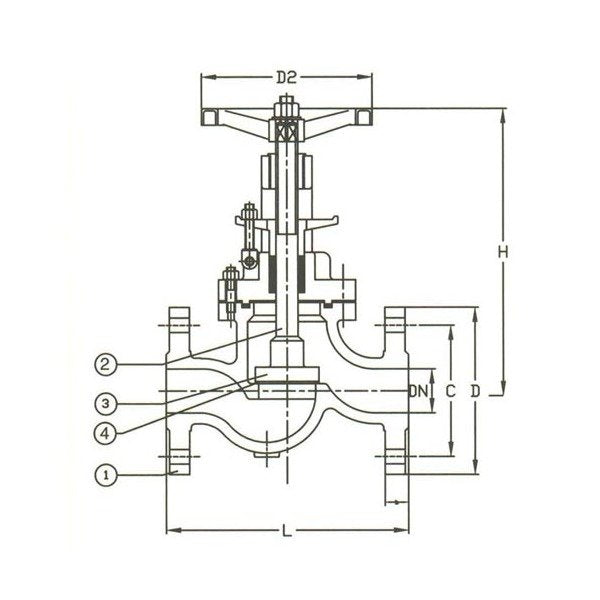

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
145 mm
Specifications Connection
Flanged Drilled
Specifications D
195 mm
Specifications D2
200 mm
Specifications Disc Material
Stellited
Specifications H
400 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications Impaissa Code
755437
Specifications L
300 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
050
Specifications Stem Material
Stellite
Specifications T
30 mm
Specifications Weight
29.00 kg
