PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
SKU:VAL-46bbb5
Premium PN 160 Cast Steel Globe Valve for reliable hydraulic control in industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
$799.99
Quantity: 1
Claim Your Seller Account
PN 160 Cast Steel Globe Regular Valve - DIN2501-PN160
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

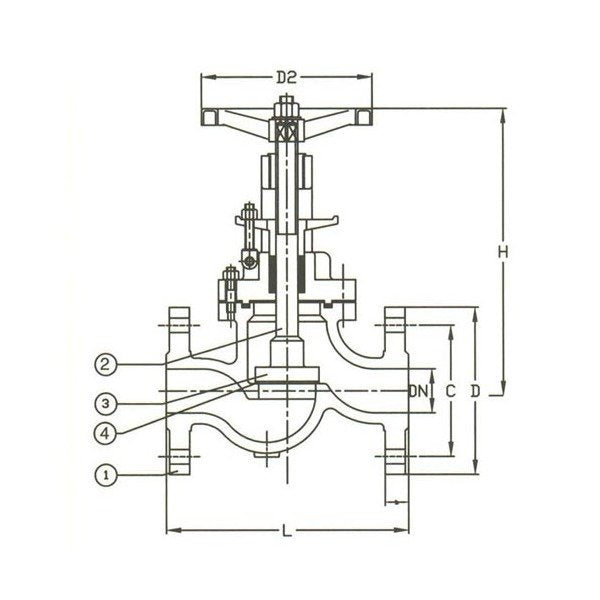

The PN 160 Cast Steel Globe Regular Valve is expertly designed with a Cast Steel body, Stellited disc, and Stainless Steel seat for superior durability and performance. Featuring precise dimensions according to ISO5752 standards, this valve ensures reliable hydraulic inspection at 240 (body) and 160 (seat) pressure ratings. With a robust Handwheel actuator and Flanged Drilled connection, it meets the stringent requirements of government procurement standards and industry certifications. Ideal for demanding industrial applications where quality and compliance are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
230 mm
Specifications D2
250 mm
Specifications Disc Material
Stellited
Specifications H
510 mm
Specifications Hydraulic Inspection Body
240
Specifications Hydraulic Inspection Seat
160
Specifications Impaissa Code
755439
Specifications L
380 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stellite
Specifications T
36 mm
Specifications Weight
73 kg
