PN 160 Cast Steel Globe Regular Valve - Flanged DIN 2501

Name: PN 160 Cast Steel Globe Regular Valve - Flanged DIN 2501
Brand: World Wide Metric, Inc.
SKU: VAL-db73ef
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-db73ef

Durable PN 160 Cast Steel Globe Valve for high-pressure systems. Compliant with ISO5752 standards.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe Regular Valve is a robust solution for industrial applications, featuring a Cast Steel body with Stellited disc and seat. The Stainless Steel stem ensures durability, while the Handwheel actuator allows precise control. Compliant with ISO5752 standards, this valve is ideal for high-pressure systems, offering reliable performance and easy maintenance.

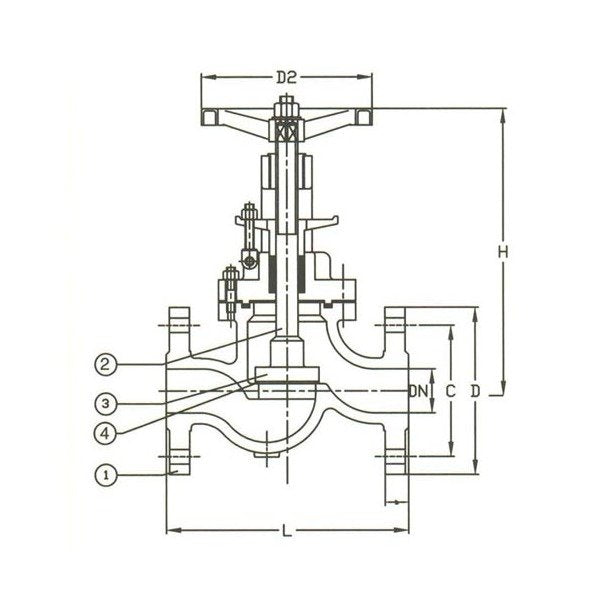

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

100 mm

Specifications Connection

Flanged Drilled

Specifications D

140 mm

Specifications D2

150 mm

Specifications Disc Material

Stellited

Specifications H

310 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications Impaissa Code

755434

Specifications L

230 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

025

Specifications Stem Material

Stellite

Specifications T

24 mm

Specifications Weight

13.0 kg
