PN 160 Cast Steel Globe Regular Valve with DIN Flanges

Name: PN 160 Cast Steel Globe Regular Valve with DIN Flanges
Brand: World Wide Metric, Inc.
SKU: VAL-17843a
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-17843a

Premium PN 160 Cast Steel Globe Valve for industrial use, DIN Flanges, superior durability & precise control.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe Regular Valve is meticulously engineered for optimal performance in industrial applications. Crafted with precision, the valve features a Cast Steel body, Stellited disc, and Stainless Steel seat to ensure durability and corrosion resistance. Compliant with ISO5752 standards for Face to Face dimensions and DIN2501-PN160 requirements for Flanges, this valve guarantees seamless integration into existing systems. With a user-friendly Handwheel actuator, this valve offers precise control and reliability.

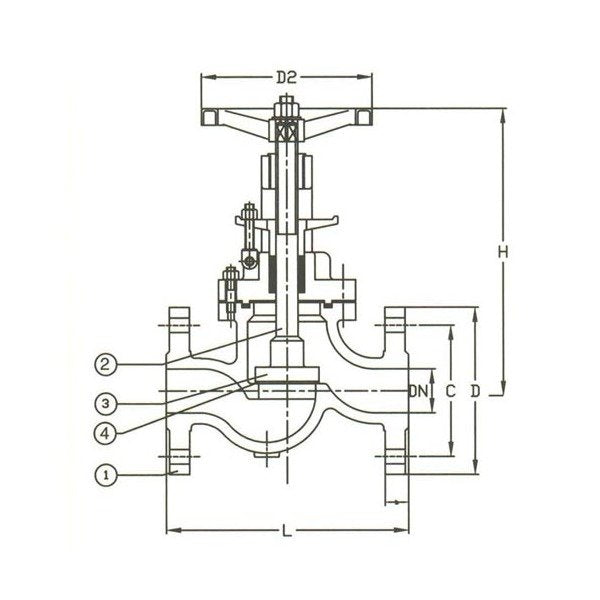

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

90 mm

Specifications Connection

Flanged Drilled

Specifications D

130 mm

Specifications D2

150 mm

Specifications Disc Material

Stellited

Specifications H

310 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications Impaissa Code

755433

Specifications L

230 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

020

Specifications Stem Material

Stellite

Specifications T

24 mm

Specifications Weight

12.5 kg

PN 160 Cast Steel Globe Regular Valve with DIN Flanges
