PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160

Name: PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160
Brand: World Wide Metric, Inc.
SKU: VAL-a03a0a
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-a03a0a

Premium PN 160 Cast Steel Globe SDNR Valve for high-pressure industrial applications. Compliant with ISO5752 and DIN standards.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe SDNR Valve is expertly crafted for high-pressure applications, featuring a durable Cast Steel body, Stellited seat and disc materials, and Stainless Steel stem. With precise engineering meeting ISO5752 standards, this valve ensures reliable performance and longevity. Ideal for industrial settings requiring strict adherence to DIN specifications.

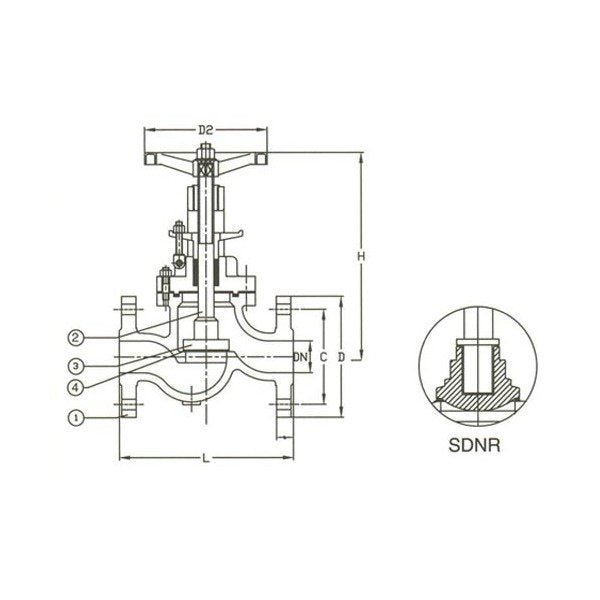

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

110 mm

Specifications Connection

Flanged Drilled

Specifications D

155 mm

Specifications D2

200 mm

Specifications Disc Material

Stellited

Specifications H

330 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications L

260 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

032

Specifications Stem Material

Stainless Steel

Specifications T

28 mm

Specifications Weight

22.5 kg
