PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160

Name: PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160
Brand: World Wide Metric, Inc.
SKU: VAL-776174
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-776174

High-performance PN 160 Cast Steel Globe SDNR Valve, delivers durability and precision, complies with DIN2501-PN160.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe SDNR Valve is engineered for exceptional performance and durability in critical industrial applications. Constructed with high-grade materials including Cast Steel body, Stellited seat, and disc, and Stainless Steel stem, this valve ensures reliable operation under high pressure and temperature conditions. The handwheel actuator provides smooth control, while the flanged connection allows for easy installation according to DIN2501-PN160 standards. With precise manufacturing and compliance with ISO5752 for Face to Face dimensions, this valve offers unmatched quality and longevity.

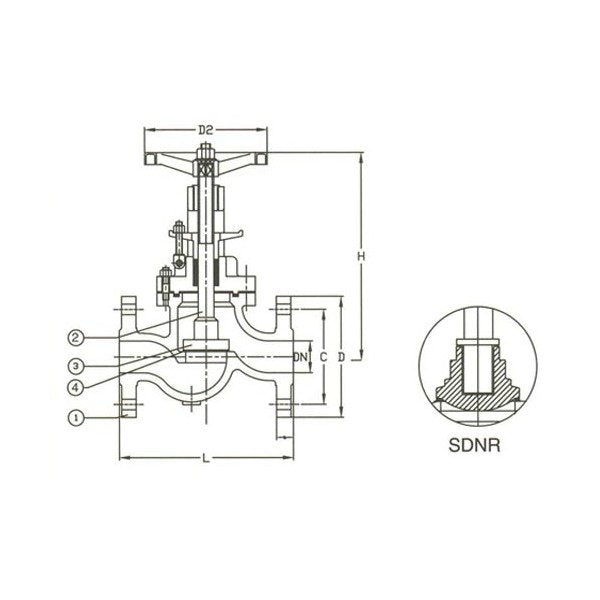

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

90 mm

Specifications Connection

Flanged Drilled

Specifications D

130 mm

Specifications D2

150 mm

Specifications Disc Material

Stellited

Specifications H

310 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications L

230 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

020

Specifications Stem Material

Stainless Steel

Specifications T

24 mm

Specifications Weight

12.5 kg
