PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160

Name: PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160
Brand: World Wide Metric, Inc.
SKU: VAL-103a52
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-103a52

High-quality Cast Steel Globe SDNR Valve designed for industrial applications, meets ISO5752 standards.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe SDNR Valve is expertly crafted with a Cast Steel body, Stellited seat, and disc, along with a Stainless Steel stem for durability and performance. With precise dimensions meeting ISO5752 standards, this valve offers reliable hydraulic inspections, sturdy flanged connections, and an easy-to-use Handwheel actuator. Ideal for industrial applications requiring high-pressure handling and secure shut-off mechanisms.

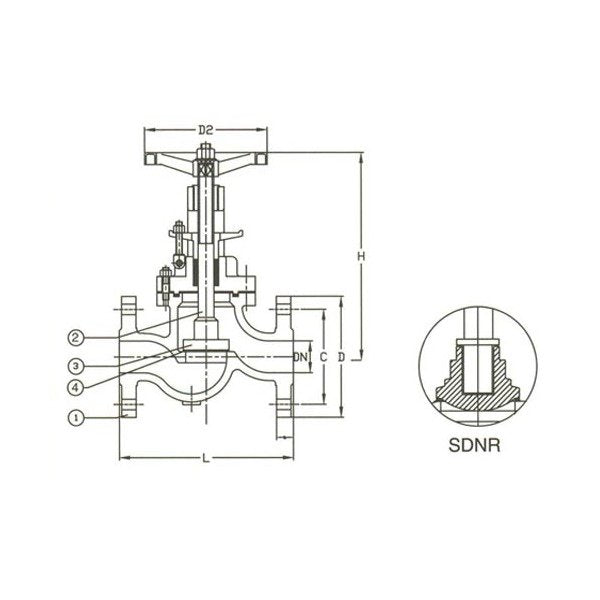

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

265 mm

Specifications D2

300 mm

Specifications Disc Material

Stellited

Specifications H

580 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications L

430 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

100

Specifications Stem Material

Stainless Steel

Specifications T

40 mm

Specifications Weight

106 kg
