PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160

Name: PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160
Brand: World Wide Metric, Inc.
SKU: VAL-7a3c39
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-7a3c39

High-performance PN 160 Cast Steel Globe SDNR Valve for industrial applications. Superior materials for longevity and precise control.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PN 160 Cast Steel Globe SDNR Valve is a reliable solution for controlling flow in industrial applications. Crafted with precision, it features a Cast Steel body, Stellited disc and seat, and a Stainless Steel stem. Compliant with ISO5752 standards, this valve ensures optimal performance in high-pressure environments. With a durable design and Flanges according to DIN2501-PN160, this valve guarantees efficient operation and longevity.

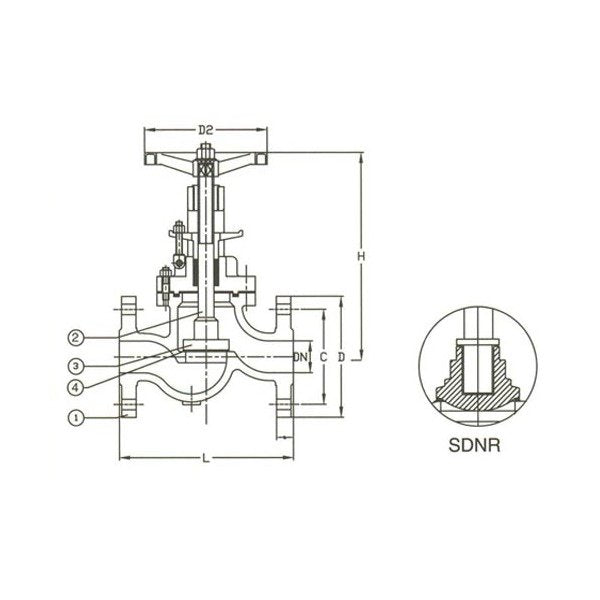

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

195 mm

Specifications D2

200 mm

Specifications Disc Material

Stellited

Specifications H

400 mm

Specifications Hydraulic Inspection Body

240

Specifications Hydraulic Inspection Seat

160

Specifications L

300 mm

Specifications Number Of Holes

Specifications Seat Material

Stellited

Specifications Size

050

Specifications Stem Material

Stainless Steel

Specifications T

30 mm

Specifications Weight

29.00 kg

PN 160 Cast Steel Globe SDNR Valve - DIN2501-PN160
